ABK-703A

ABK-703A

32,11 €
34,53 €

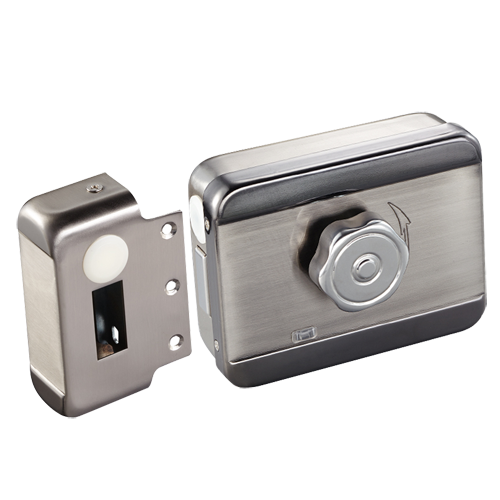

Electromechanical surface lock - Fail Safe (NC) opening mode - Suitable for surface mounting - LED status indicator - Programmable self-closing - Cylinder included with keys
Description
  • Electromechanical Security Lock for surface mounting
  • Cylinder with keys included
  • NC Normally Closed (Fail Safe)
  • Applicable in Fire protection systems
  • It has status LED
  • Mounting on wooden doors, Metal, Glass
  • 12 VDC
Specifications
MountingSurface
Opening modeFail Safe (NC)
Locking delay time9 seconds in case of no opening / in case of opening it locks in 1 second by sensor detection
Bolt length20 mm
PowerDC 12 V / 350/25 mA start/standby
Open sensorIntegrated LED indicator, exit indicator.
Plate dimensions61.25 (D) x 100 (H) x 130 (W) mm
Weight1.45 Kg
Temperature-20º C ~ +50º C
Contents
  • Lock
  • Cylinder with keys
  • Electromagnetic strike with sensor
  • Installation material
  • Installation manual
