- Bobbin of cable
KX6P-300-LSZH
100,75 €
108,33 €
108,33 €

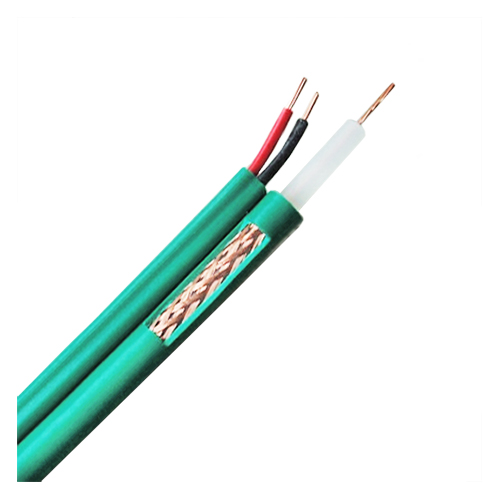

Coaxial cable KX6 - Video and power supply - Bobbin of 300 meters - Green outer insulation - LSZH jacket - Low loss
Description

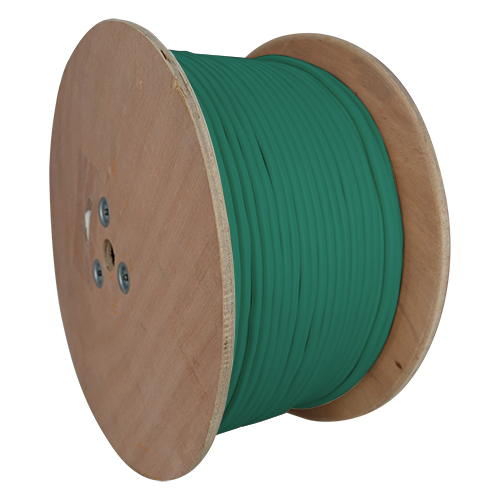

- Bobbin of cable
- 300 m
- Combined: KX6 and 2 power supply cables
- KX6: Copper interior conductor 7/0.2 mm
- PE Solid insulation 3.7 mm
- Twisted CCA exterior conductor 128/0.12 mm
- LSZH PVC cover 6.0 mm
- Power cables: CCA interior conductor 16/0.2 mm
- Insulation LSZH PVC 1.8 mm (red/black)
- PVC cover 5.0 mm
- Green exterior cover LSZH PVC 9.0 mm
Specifications
| Length | 300 m |
| Interior conductor KX6 | Copper 7/0.2 mm |
| Isolation KX6 | Solid 3.7mm PE |
| Exterior conductor KX6 | CCA twisted 128/0.12 mm |
| Cover RG59 | LSZH PVC 6.0 mm |
| Interior DC conductor | CCA 16/0.2 mm |
| DC isolation | LSZH PVC 1.8mm (red/black) |
| Combined insulation | LSZH 9.0mm |
