Contents
- Power supply distribution box with 18 outputs 12 V
- Safety lock key
- Installation material

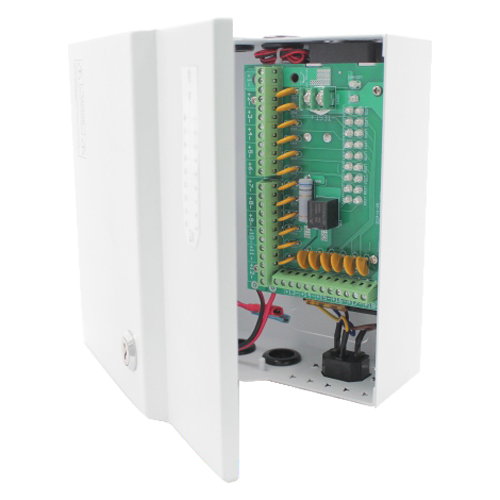

PD250W-18-12V-UPS
53,74 €
57,78 €
57,78 €
Power supply distribution box - 1 AC input 110 V ~ 220 V - 18 outputs - Protection by resettable PTC fuse - Output voltage 12 V / 250 W - Uninterruptible Power Supply function (UPS)
Description
- Power supply distribution box with space for UPS
- 1 AC input 100~240 V 50/60 HZ
- 18 outputs
- Output voltage 12 V
- Output power 250 W (20 A)
- Protection by resettable PTC fuse
- Possibility to connect battery for UPS function (recommended 7Ah-24Ah)
- Battery test
- Protective metallic housing
Specifications
| Power supply input | AC 110 V - 220 V 50/60 Hz |
| Power supply outputs | 18 outputs via copper pair (clamp) |
| Output voltage | Adjustable 12V |
| Output power | 250 W |
| UPS function | Recharge and supply (recommended battery 12 V / 7 Ah-24Ah) |
| Battery connection type | F1 |
| Power supply Protection | PPTC Fuse |
| Dimensions | 216.5 (H) x 202 (W) x 73 (D) mm |
| Weight | 2400 g |
