Contents
- Magnetic contact
- Installation material
- User instructions

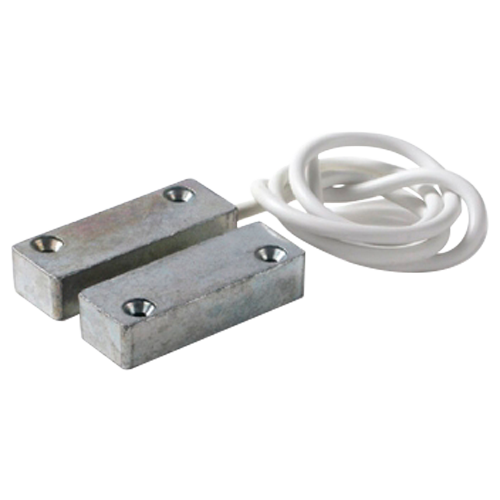

A-C3
6,19 €
6,88 €
6,88 €
FDP magnetic contact - Special for metal surface - Reed technology High power - 4 Thread system - Metal cover - Suitable for exterior IP65 - Grade 2 approved
Description
- FDP
- Magnetic surface detector
- Reed Technology
- High power
- Suitable for metal installation
- High resistance to mechanical and electrical shocks
- 4 Thread system
- Metal cover
- Suitable for exterior IP65
- Grade 2 approved
Specifications
| Brand | FDP |
| Security grade | Grade 2 (EN50131-2-6) |
| Environmental class | Class 4 / Suitable for outdoor IP65 |
| Technology | Reed |
| Power | High power |
| Maximum detection distance | In wood 20 mm In ferrous materials 10 mm In Aluminium 20 mm |
| Installation Form | Surface |
| Cable length | 4 60cm(2 alarm / 2 tamper wires) |
| Magnet | Neodymium |
| Electrical parameters | 200 VDC max, 0.5A, 10W |
| Material | Metallic |
| Dimensions | 52 x 19 x 13 mm |
