Contents
- Magnetic contact
- Installation material
- User instructions
A-CO
5,46 €
6,07 €
6,07 €

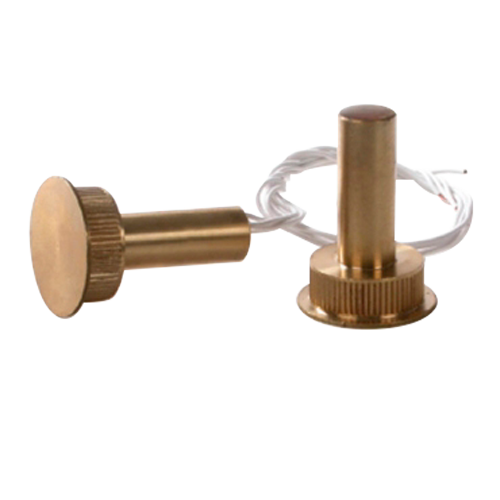

Mini Magnetic Contact FDP - Special for installation in metal - Reed Technology - 4 Thread system - Copper cover - Suitable for exterior IP65 - Grade 2 approved
Description
- FDP
- Recessed magnetic detector
- Reed Technology
- High power
- Suitable for metal installation
- High resistance to mechanical and electrical shocks
- 4 Thread system
- Copper cover
- Suitable for exterior IP65
- Grade 2 approved
Specifications
| Brand | FDP |
| Security grade | Grade 2 (EN50131-2-6) |
| Environmental class | Class 4 / Suitable for outdoor IP65 |
| Technology | Reed |
| Power | High Power |
| Maximum detection distance | In wood 20 mm In ferrous materials 10 mm In Aluminium 20 mm |
| Installation Form | Built-in |
| Cable length | 4 25cm(2 alarm / 2 tamper wires) |
| Magnet | Neodymium |
| Electrical parameters | 180 VDC max, 0.5A, 10W |
| Material | Copper |
| Dimensions | 15 (8-7) x Ø24-20-10 mm |
