AB-60

AB-60

27,53 €
29,60 €

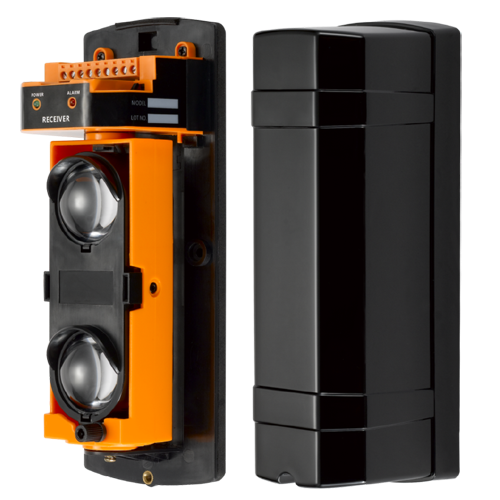

Infrared barrier detector - Wired | 2 beams - Max distance. detection 60 / 180 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
Description
  • Duoble beam infrared barrier for outdoor
  • Wired
  • Maximum detection transmitter / receiver 180 m (interior) and 60 m (exterior)
  • Double adjustable lens
  • H: ±90º / V: ±10º
  • DIP Switch for programming
  • 4 work frequencies
  • Easy programming over LED Display
  • Power 12~24 VDC/VAC
Specifications
Detection range180m indoor / 60m outdoor
Number of beams2
Detection methodInterruption of the 2 beams at once
Interruption time50ms, 100ms, 300ms, 700ms (available)
Frequency channels4 different channels over DIP Switch
Alarm outputs1 relay NO/NC (max. 30VDC/VAC, 1A), Tamper NC
Alignment angleHorizontal 180°(±90°), Vertical 20°(±10°)
Adjustment methodOver LCD Display between 0-99
Operating temperature-25ºC ~ +55ºC
Degree of protectionIP65
Power12~24 VDC/VAC, 75 mA max.
Dimensions211.5 (H) x 79.9 (W) x 74.7 (D) mm
Contents
  • Infrared barrier
  • Installation material
  • User instructions
