ABK-702A-R

ABK-702A-R

18,35 €
19,73 €

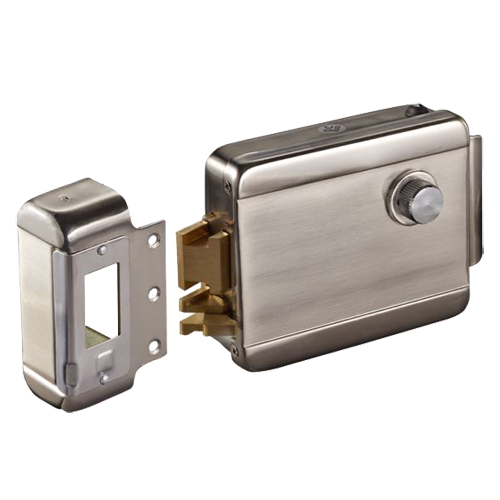

Electromechanical surface lock - Fail Safe (NC) opening mode - Applicable for firefighting systems - LED status indicator - Programmable self-closing - Right-hand opening outwards
Description
  • Electromechanical surface-mounted security lock
  • Normally closed NC (Fail Safe)
  • Open door signal
  • Door sensor
  • Applicable for firefighting systems
  • It has status LED
  • Mounting on wood, metal, glass and RF doors
  • Anti-sabotage lock
  • 12 VDC
  • Opening to the right
Specifications
MountingSurface
Opening modeFail Safe (NC)
Locking delay time9 seconds in case of no opening / in case of opening it locks in 1 second by sensor detection
Bolt length20 mm
PowerDC 12 V/ 1.5- 3A
Open sensorIntegrated LED indicator, exit indicator.
Plate dimensions34.5 (d) x 126(Al) x 102 (w) mm
Weight1.45 Kg
Temperature-40º C ~ +50º C
Contents
  • Lock
  • Electromagnetic strike with sensor
  • Installation material
  • Installation manual
