Contents
- Laser barrier
- Installation material
- User instructions
ABL-J5003
463,85 €
498,76 €
498,76 €

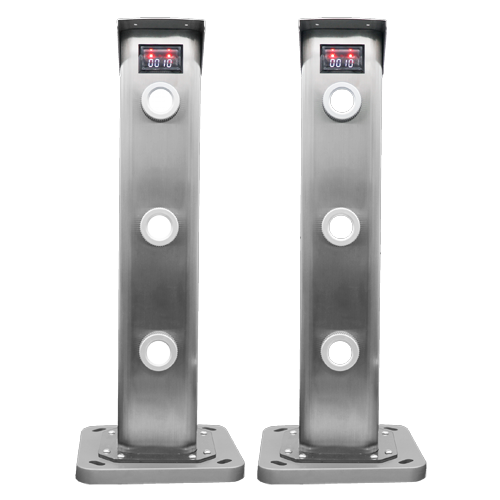

Laser Barrier Detector - Wired | 3 beams - Max distance. The detection 500 m - Simple installation with LED and aligner (ABL-JYD) - NC/NO relay outputs - Power 12~24 VDC/VAC
Description
- Triple beam outdoor laser barrier
- Wired
- Maximum sender / receiver detection 500 m (exterior)
- Triple adjustable lens
- H: ±15º / V: ±15º
- DIP Switch for programming
- Intelligent working frequencies to avoid false alarms
- Configurable alarm jump
- Easy programming over LED Display
- Stainless steel metal casing
- Weatherproof IP67
- Power 12~24 VDC/VAC
Specifications
| Detection range | 500m outdoor |
| Number of beams | 3 |
| Detection method | Configurable: alarm by cutting one beam, two beams or all beams at once |
| Sensitivity | Adjustable (50/100/300/700 ms) |
| Frequency channels | Each beam works at its own frequency |
| Alarm outputs | 1 relay NO/NC (max. AC125V/0.5A, DC24V/1A) |
| Alignment angle | H: ±15º / V: ±15º |
| Adjustment method | Through LED and alignment tool (ABL-JYD) |
| Operating temperature | -25ºC ~ +70ºC |
| Degree of protection | IP67 |
| Power | 12~24 VDC/VAC, 150 mA max. |
| MTBF | 120.000 hours |
