Infrared barrier
Installation material
User instructions

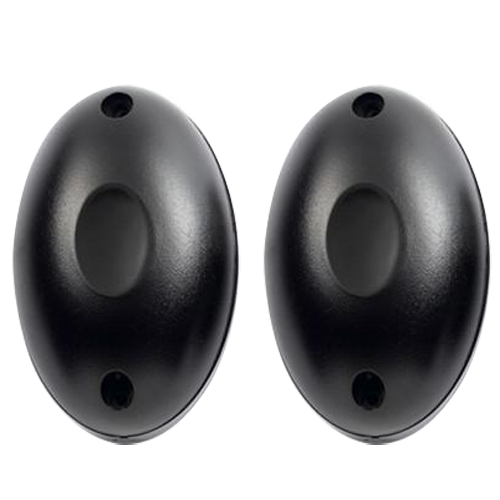

ABO-20L
9,10 €
10,11 €
10,11 €
Infrared barrier detector - Wired | 1 beam - Max distance. detection 10 / 20 m - Smaller size and easy installation - Relay - Power supply 12~24VDC/VAC
Description
Single beam infrared barrier for outdoor
Wired
Maximum detection transmitter / receiver 20 m (interior) and 10 m (exterior)
Reduced size
Power 12-24 VDC/VAC
Specifications
| Detection range | 20m indoor / 10 m outdoor |
| Number of beams | 1 |
| Detection method | Infrared beam interruption |
| Frequency channels | 1 channel |
| Alarm outputs | 1 relay NO/NC (max. 36VDC/VAC, 1A) |
| Adjustment method | Over LED |
| Operating temperature | -25ºC ~ +55ºC |
| Power | 12~24 VDC/VAC, 30 mA max. |
| Dimensions | 75.3 (H) x 49.2 (W) x 29.6 (D) mm |
