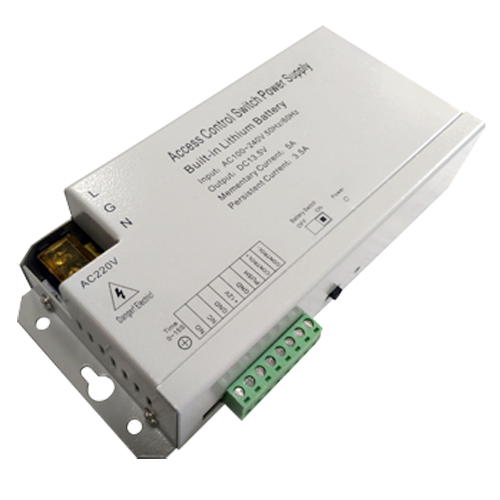

AC-12DC3A-BAT
43,69 €
48,54 €
48,54 €
Power supply - Exclusive for access control - Control of different locks - Backup battery - Can be configured in NC/NO - Communication by Wiegand and RS485
Description
- Power supply
- Exclusive for access control
- AC input 100-240 50/60 Hz
- Output DC 13,5 V
- Backup battery of 12V
- Can be configured as NC/NO
- Control of various types of electric locks
- Built-in anti-lock inductor circuit
- 0-15s Adjustable potentiometer with built-in unlock.
- Can be connected to CCTV cameras
Specifications
| Input power | AC 220 V 50/60 Hz |
| Output power | 13.5 V / 3500 mA |
| Backup Battery | 12V/7Ah |
| Operating temperature | -20ºC ~60ºC |
| Relative working humidity | < 90% |
| Dimensions | 194(Al) x 95(An) x 44 (D) mm |
| Weight | 2000 g |
