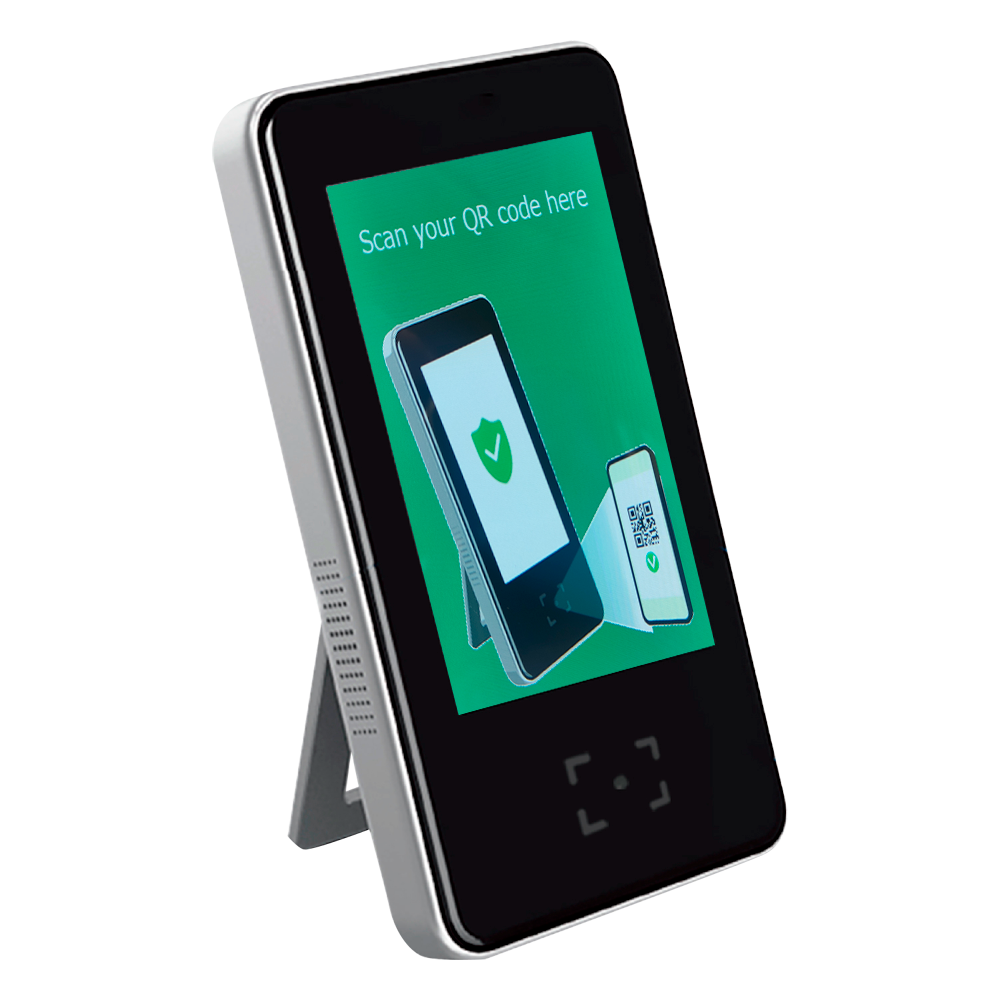

AC301-QR

38,96 €
41,89 €

Standalone access control - QR code access - Relay or alarm output - 5" IPS screen - Time control | Access schedule - Valid for interior

Availability

2-5 Days

Buy

Description

Standalone access reader

QR code access

5" IPS color screen

TCP/IP and WiFi communication

Integrated controller (relay or alarm)

Permanent and temporary codes

Access hours

Opening with valid or rejected code

Opening time control

Opening records

Customizable display background

Desktop or wall-mounted installation

Valid for interior

Specifications

Identification modes	QR code, with records
Capacity	Up to 2.000 QR codes
Records	Up to 1.000 records
Reading distance	5 ~ 25 cm
Screen	5" HD IPS high-definition with customisable display background
Communication	TCP/IP and WiFi
Outputs	NO/NC/COM relay or alarm output
Audio	Multi-language audible message and configurable volume
Opening time	Adjustable 1 ~ 99 seconds
Display result time	Adjustable 1 ~ 15 seconds
Special functions	Physical reset button
Power	DC 5 V / 2 A (10 W max.), via USB
Protection	Valid for interior
Temp. operation	0º C ~ +50º C
Dimensions	87 (W) x 164 (H) x 20 (D) mm
Weight	2.1 kg
Languages	Italian, French, German, Portuguese, Spanish, English

Contents

Access Control Reader

Mounting material
