Contents
- Module
- Installation material
- Instructions

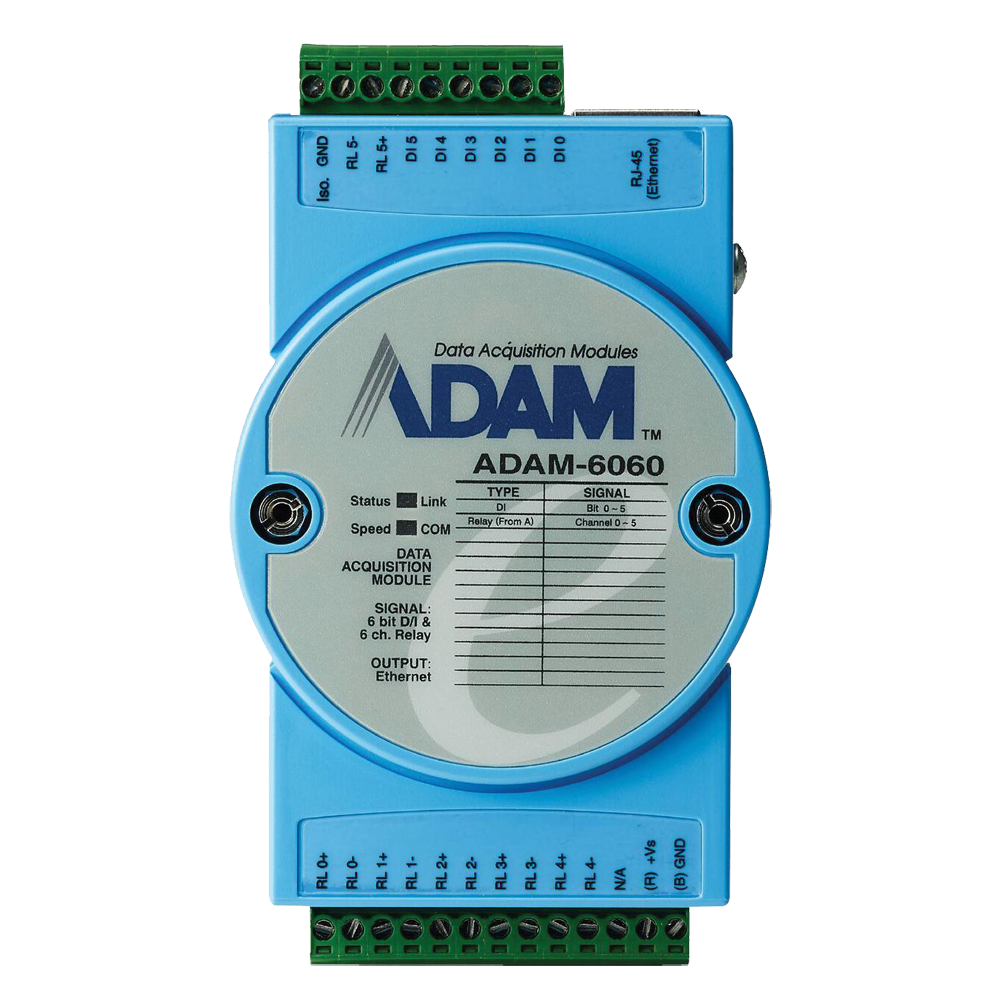

ADAM-6060-B
269,96 €
299,96 €
299,96 €
Data acquisition and control module - 6 digital inputs / 6 relay outputs - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Ability to create analog control rules - Integrated web server - 1 Ethernet port 10/100 Base-TX
Description
- Data Acquisition and Control (DA&C) Modules
- 6 digital inputs and 6 relay outputs
- LED indicator
- Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
- Web language support: XML, HTML 5, Java Script
- Ability to create analog control rules
- Connection to the cloud: Enables remote monitoring and control as well as updating data with Azure
- Automatic rerouting function to ensure daisy-chained data transmission
- Integrated web server
- Watchdog function for system recovery
- 1 Ethernet port 10/100 Base-TX
Specifications
| Inputs | 6 Digital |
| Outputs | 6 relays |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP |
| Supported web languages | XML, HTML 5, Java Script |
| Communication | 1 Port 10/100 Base-TX |
| Watchdog | System: 1.6 seconds Communication: Programmable |
| Connectors | Plug-in / screw-tightening connectors |
| Dimensions | 70x122x27mm |
| Temperature | Functioning: -40~70ºC Storage: -40~80ºC |
| Humidity | Functioning:20~95% (without condensation) Storage: 0~95% (without condensation) |
| Power | 10~30VDC (24VDC Standard) |
| Consumption | 2W@24VDC |
| Protection | TVS / ESD Power reversal protection Overvoltage protection: +/- 35VDC Insulation protection: 2500 VDC |
