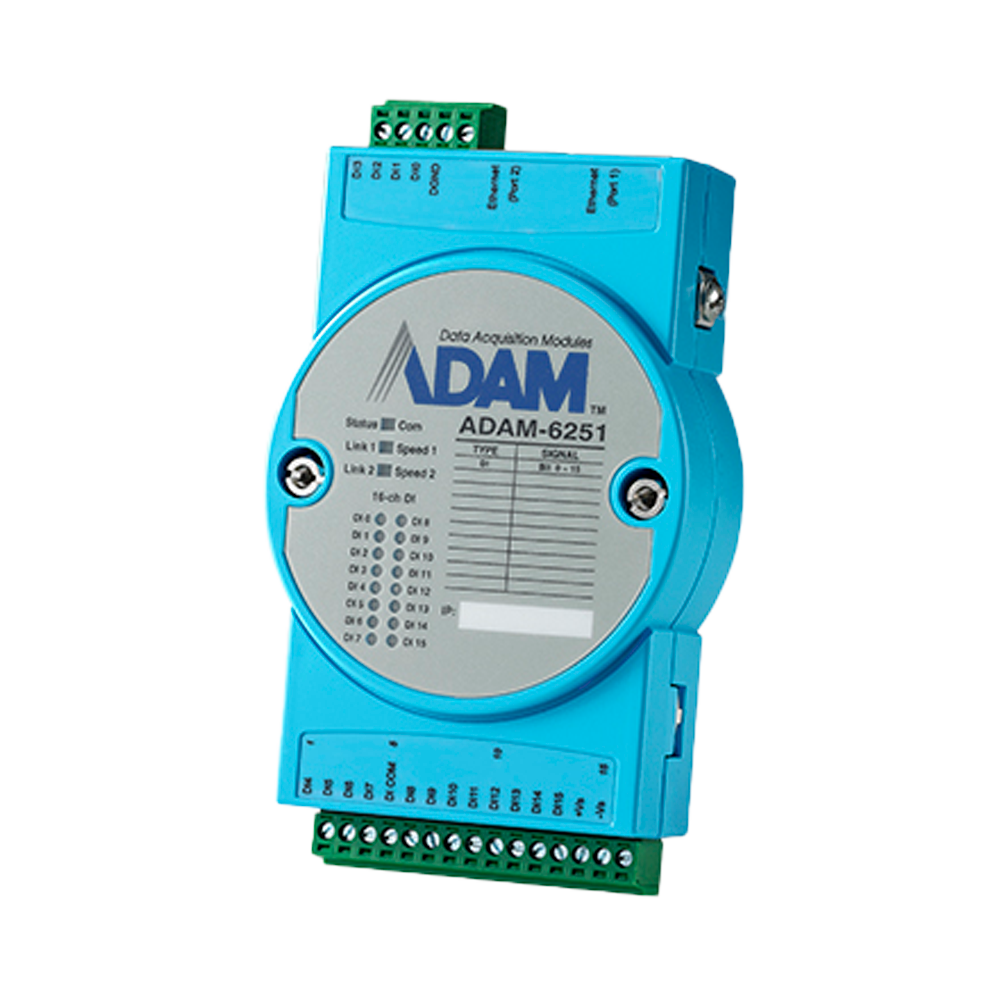

ADAM-6251-B

ADAM-6251-B

211,42 €
227,33 €
Data acquisition and control module - 16 digital inputs - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Ability to create analog control rules - Integrated web server - 2 Ethernet ports 10/100 Base-TX
Description
  • Data Acquisition and Control Module (DA&C)
  • 16 digital inputs
  • LED indicator
  • Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
  • Web language support: XML, HTML 5, Java Script
  • Ability to create analog control rules
  • Connection to the cloud: Enables remote monitoring and control as well as updating data with Azure
  • Automatic rerouting function to ensure daisy-chained data transmission
  • Integrated web server
  • Watchdog function for system recovery
  • 2 Ethernet ports 10/100 Base-TX
Specifications
Inputs 16 Digital
Protocols Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Supported web languages XML, HTML 5, Java Script
Communication 2 Ports 10/100 Base-TX
Watchdog System: 1.6 seconds
Communication: Programmable
Connectors Plug-in / screw-tightening connectors
Dimensions 70x122x27mm
Temperature Functioning: -40~70ºC
Storage: -40~80ºC
Humidity Functioning:20~95% (without condensation)
Storage: 0~95% (without condensation)
Power 10~30VDC (24VDC Standard)
Consumption 2.7W@24VDC
Protection TVS / ESD
Power reversal protection
Overvoltage protection: +/- 35VDC
Insulation protection: 2500 VDC
Contents
  • Module
  • Installation material
  • Instructions
