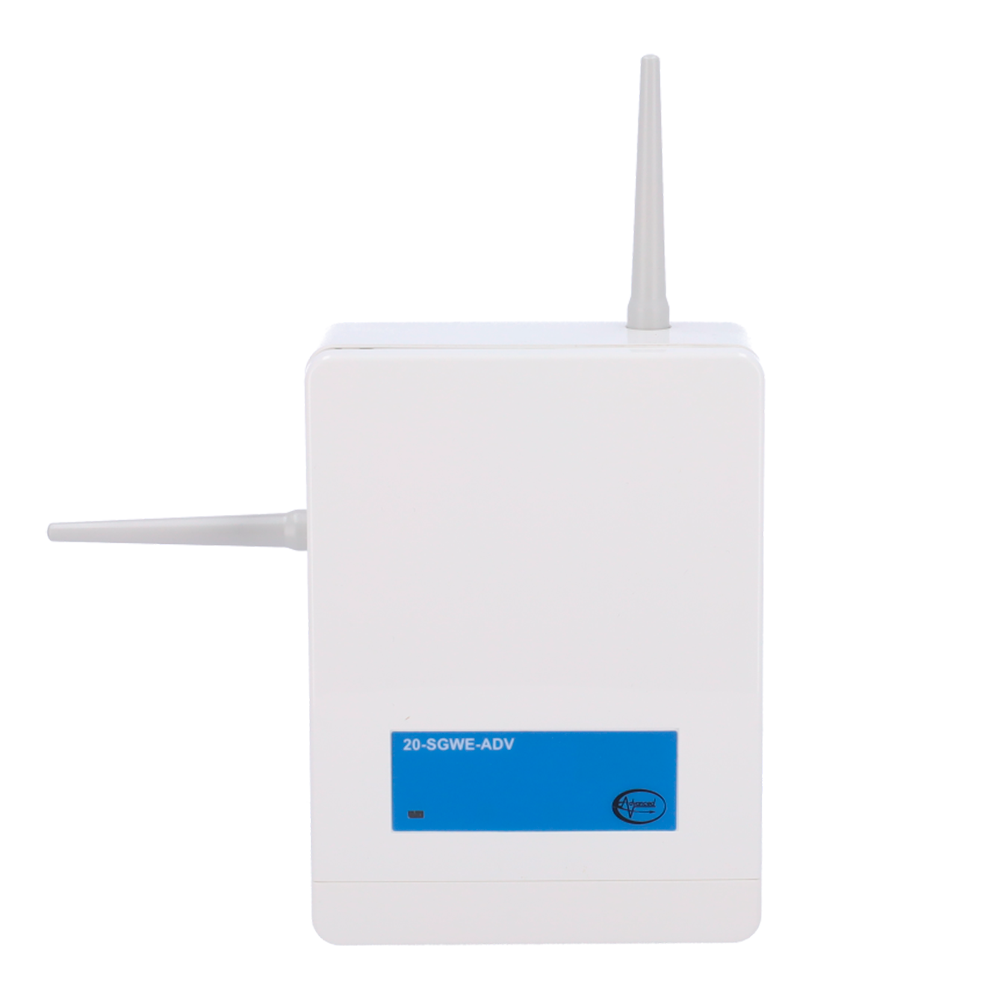

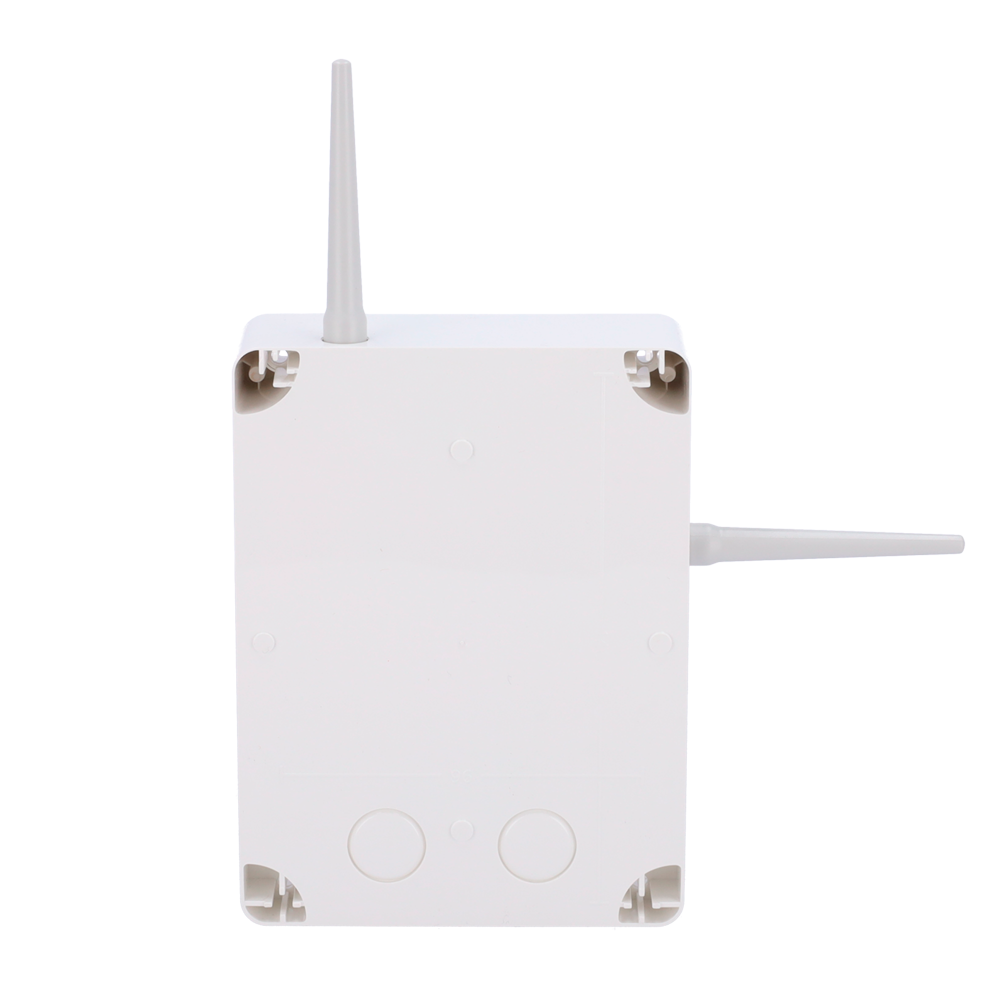

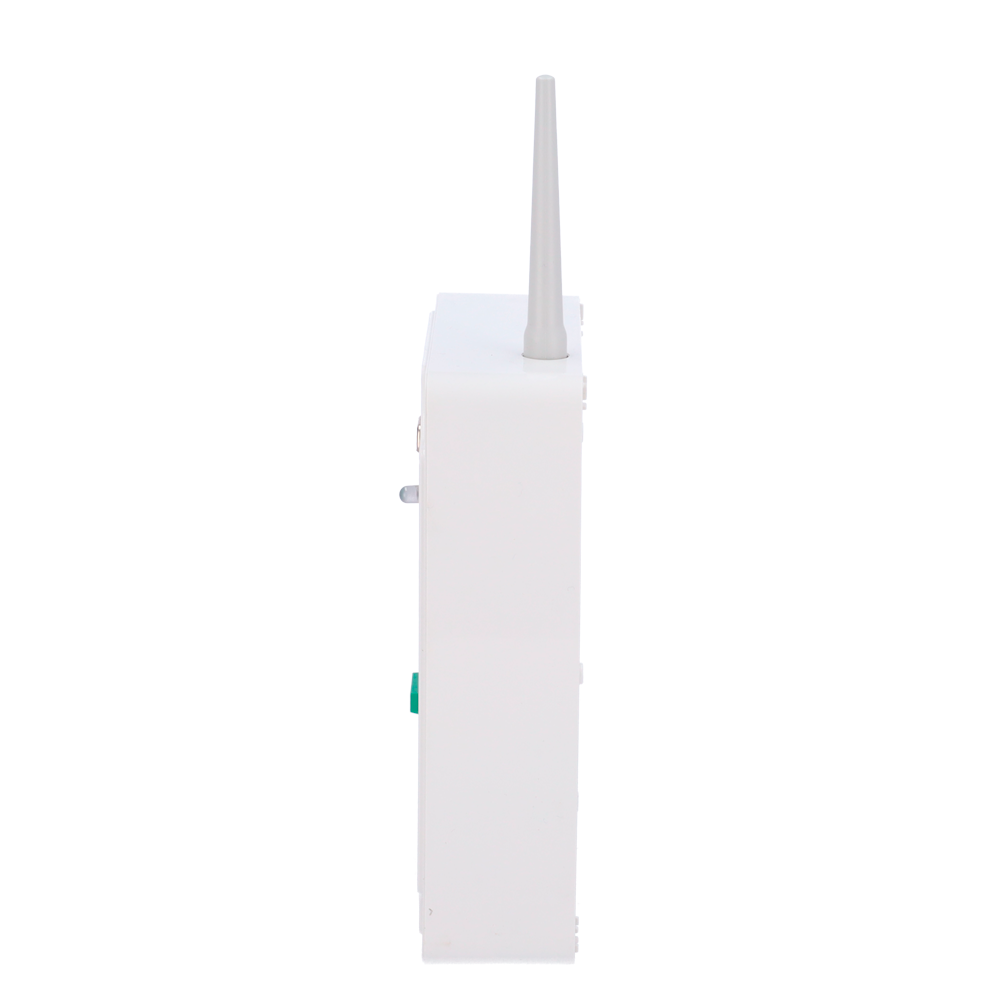

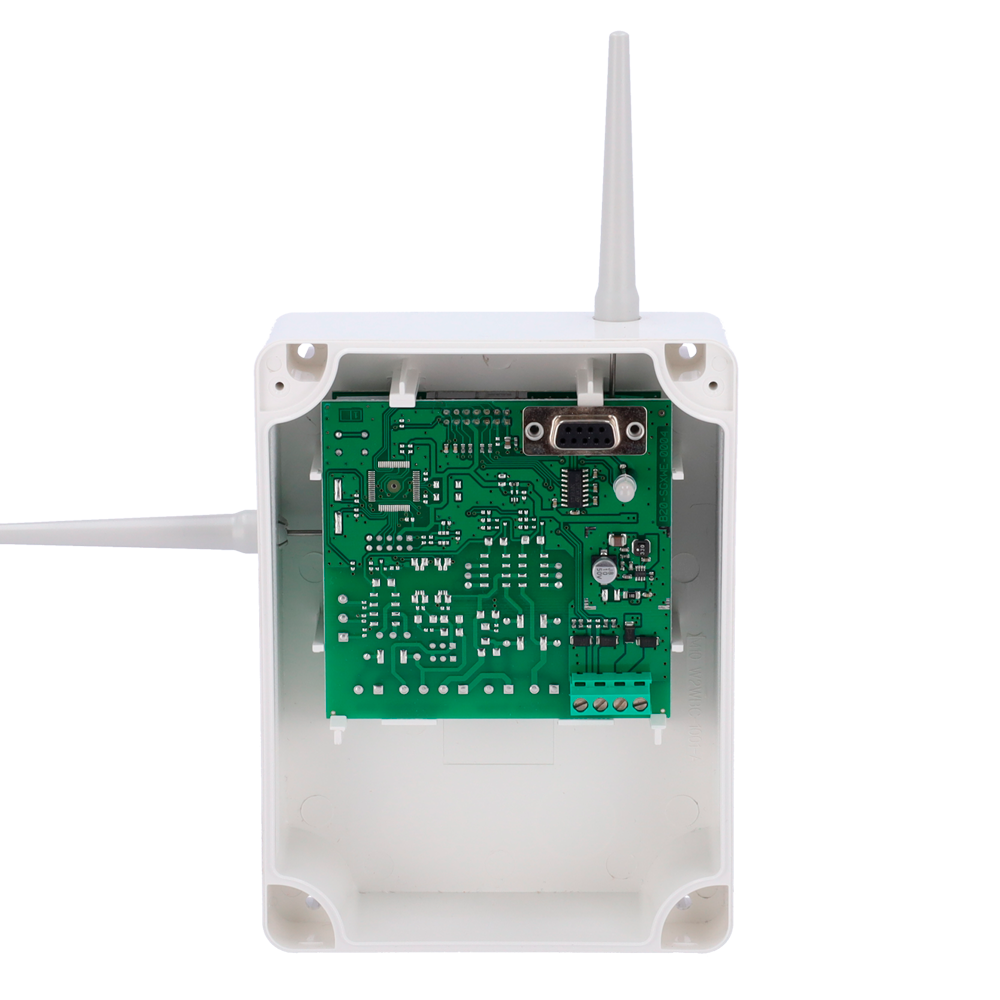

ADV-20-SGWE

Wireless Expander Module - Compatible with Advanced wireless range - Allows you to expand the wireless coverage range - Power supply from 9 to 30 VDC

Availability

2-5 Days

Description

Advanced

Wireless amplifier

Up to 7 expanders used with each ADV-20-VW2W100

Easy installation, externally motorized

Bidirectional communications with all devices

Specifications

Brand	Advanced
Power	9~30 VDC
Communication distance	Up to 200 meters
Frequency	868.15 MHz –869.85 Mh FSK
Frequency channels	7
Emission power	5 dBm (3mW)
Operating temperature range	-30ºC ~ +50ºC
Dimensions	120 x 160 x 51 mm (HxWxD) / Antenna 74mm
Weight	330g
Degree of protection	IP51C
Programming software	"Wirelex-Fire" version 5.0 or higher

Contents

Wireless expander
