AJ-COMBIPROTECT-W

AJ-COMBIPROTECT-W

PIR and glass break detector - Pet immune / Bidirectional - Certificate Grade 2 - 868MHz Jeweller Wireless - PIR detection range 12 m - Detection range of glass breakage 9 m
Description

Ajax

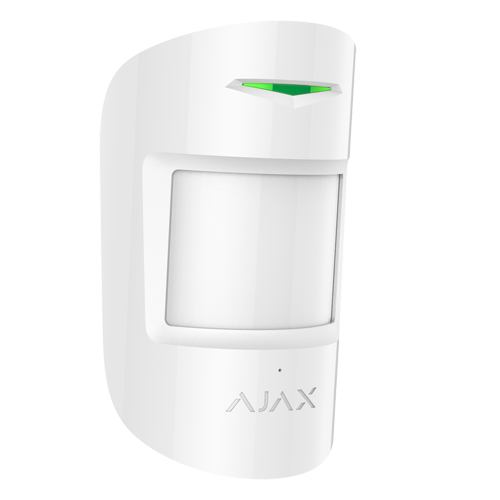

Pet immune volumetric PIR and glass breaking detector

Bidirectional

Grade 2 approved

868MHz Jeweller Wireless

Internal antenna range open space 1200 m

Motion detection indicator

Detection: Range 12m / H: 88.5º / V: 80º

Tamper-resistant opening

Pet immunity ≤ 20 kg and ≤ 50 cm

Power supply 1 battery CR123A 3.0 V (estimated duration 5 years)

Interior use

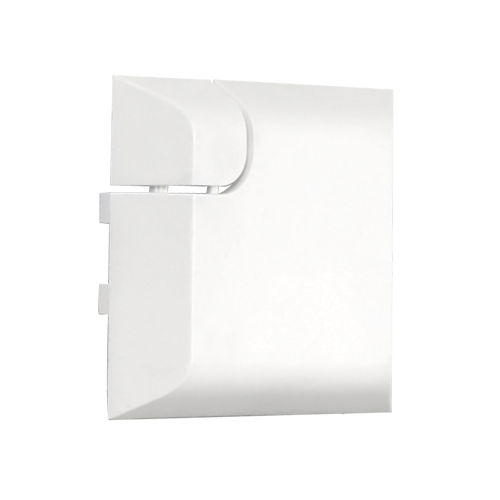

Includes mounting bracket

White colour

Specifications
Brand Ajax
Technology Volumetric PIR and microphonic sensor for glass breaking detection
Security grade Grade 2
PIR lens 24 zones and 6 planes
PIR detection range 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Break detection range 9 m
Frequency 868 MHz Jeweller
Transmission distance ≤ 1200 m in open space
Pet immunity ≤ 20 kg, ≤ 50 cm
Anti-masking No
Sensitivity Adjustable. 3 levels (low, medium and high)
LEDs indication Alarm, tamper, signal
Battery 1 battery CR123A 3.0 V (approximate life time 5 years)
Temp. operation 0º C ~ 50º C
Housing material ABS plastic
Dimensions (without bracket) 110 (H) x 65 (W) x 50 (D) mm
Contents

PIR and glass break detector for interior

Instructions Manual

Mounting material
