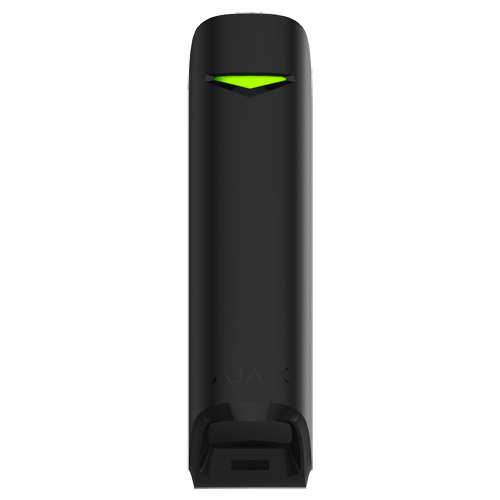

Ajax PIR Curtain Detector - 868MHz Jeweller Wireless - Grade 2 approved - Configurable detection range from 6 to 15 m - Reach in open space 1700 m - Interior use


Curtain detector

Grade 2 approved


868MHz Jeweller Wireless

Double PIR curtain type

Detection: Range from 6 to 15 m / 6º H / 90º V

Motion detection indicator

Tamper-resistant opening

Range in open space 1700 m

Power supply 1 battery CR123A 3.0 V (estimated duration 3 years)

Interior use

Includes mounting bracket

Black colour

Brand Ajax
Technology Double PIR curtain type
Detection range 6~15 m / 6º H / 90º V / Installation 2.4 m
Frequency 868 MHz Jeweller
Transmission distance ≤ 1700 m in open space
Anti-masking Not available
Sensitivity Adjustable. 3 levels (high, medium, low)
Tamper-resistant opening Available
LEDs indication Alarm, tamper, signal
Power 1 battery CR123A 3.0 V (approximate life time 3 years)
Temp. operation -10 ºC ~ 40 ºC
Degree of protection IP54
Bracket Includes normal bracket and L-bracket
Dimensions 134 (H) x 44 (W) x 34 (D) mm

PIR Detector curtain type

Instructions Manual

Mounting material

Two brackets
