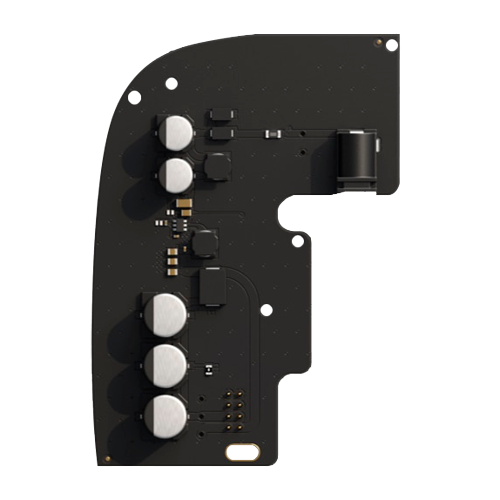

- Power Module 6 VDC for Ajax Hub 2 , Hub 2 Plus and ReX 2
AJ-DC6V-PCB2
24,63 €
27,37 €
27,37 €
Ajax - 6 VDC power module - Compatible with Ajax Hub 2 , Hub 2 Plus and ReX 2 - Input voltage 4.2~10 VDC - Average consumption per hour 95 mA - Connector CON280 included
Description
- Power Module 6 VDC for Ajax Hub 2, Hub 2 Plus and ReX 2
- Input voltage 4.2~10 VDC
- Maximum input 2.2 current A (4.2 VDC)
- Average consumption per hour 95 mA
- Easy installation with panel plate placement
- If used in conjunction with a long-life battery, it is essential to follow the guidelines to ensure battery life (Stand-alone Hub Configuration Guide)
Specifications
| Brand | Ajax |
| Compatibility | Ajax Hub 2 , Hub 2 Plus and ReX 2 |
| Input voltage | 4.2~10 VDC |
| Maximum current required | 2.2 A (@4.2 VDC) / 0.8 A (@10 VDC) |
| Output current | 1.5 A |
| Average consumption per hour | 95 mA |
| Dimensions | 98 (H) x 70 (W) x 17 (D) mm |
