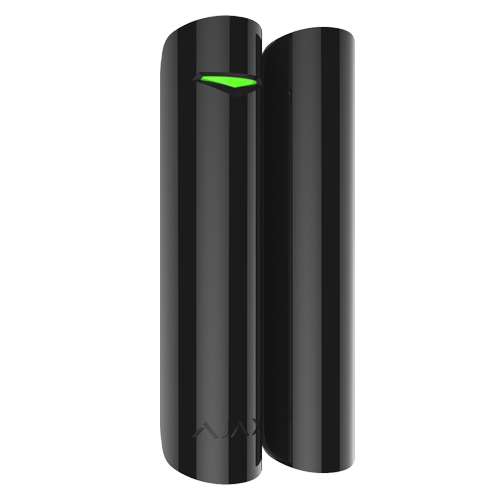

AJ-DOORPROTECTPLUS-B

AJ-DOORPROTECTPLUS-B

Door/window magnetic contact - Detector with tilt and shock sensor - 868MHz Jeweller Wireless - Grade 2 approved - 1 wired input / 1 Tamper - Power supply 1 battery CR123A 3.0 V
Description

Ajax

Magnetic door/window contact with vibration and tilt detection

Bidirectional

Grade 2 approved

868MHz Jeweller Wireless

Internal antenna range open space 1000 m

Open/Close indicator detection

Supports wired sensor input

Tamper-resistant opening

Power supply 1 battery CR123A 3.0 V (estimated duration 5 years)

Interior use

Includes mounting bracket

Black colour

Specifications
Brand Ajax
Frequency 868 MHz Jeweller
Security grade Grade 2
Transmission distance ≤ 1000 m in open space
Auxiliary input external contact Voltage-free NC or pulse counting card function compatible with detector LINCE-8023-RSCP
LED indicators Alarm, tamper, signal
Housing material ABS plastic
Battery 1 battery CR123A 3.0 V (approximate life time 5 years)
Temp. operation 0º C ~ 50º C
Transmitter dimensions 90 mm (D) x 20 (Ø) mm
Magnet dimensions 90 mm (D) x 20 (Ø) mm
Contents

Magnetic contact

User instructions

Mounting material
