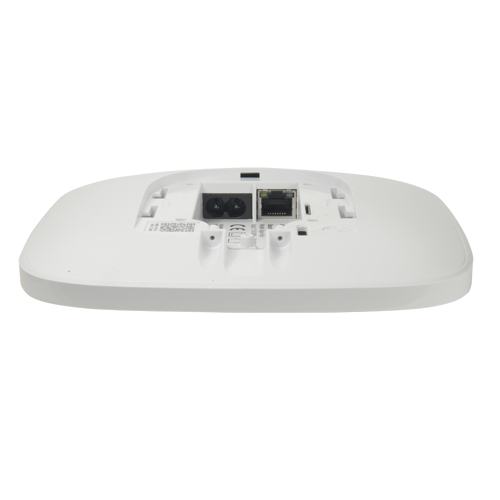

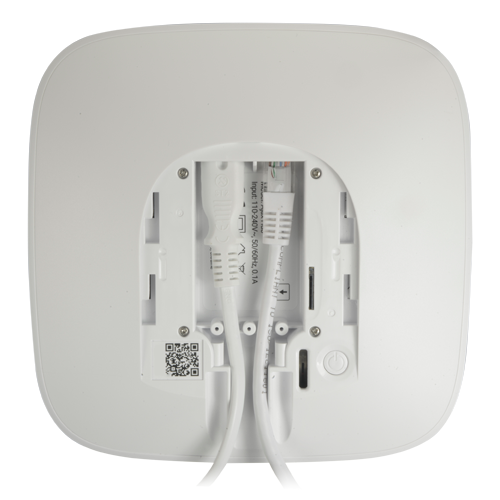

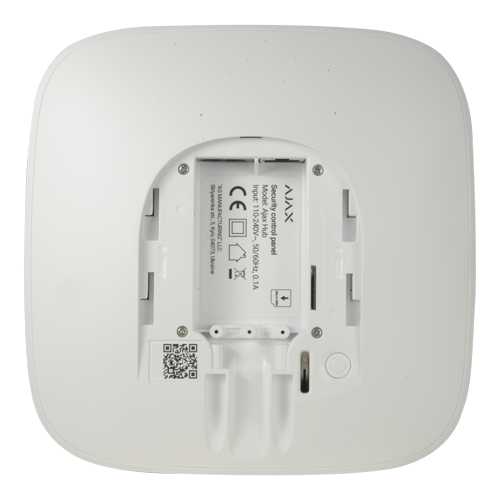

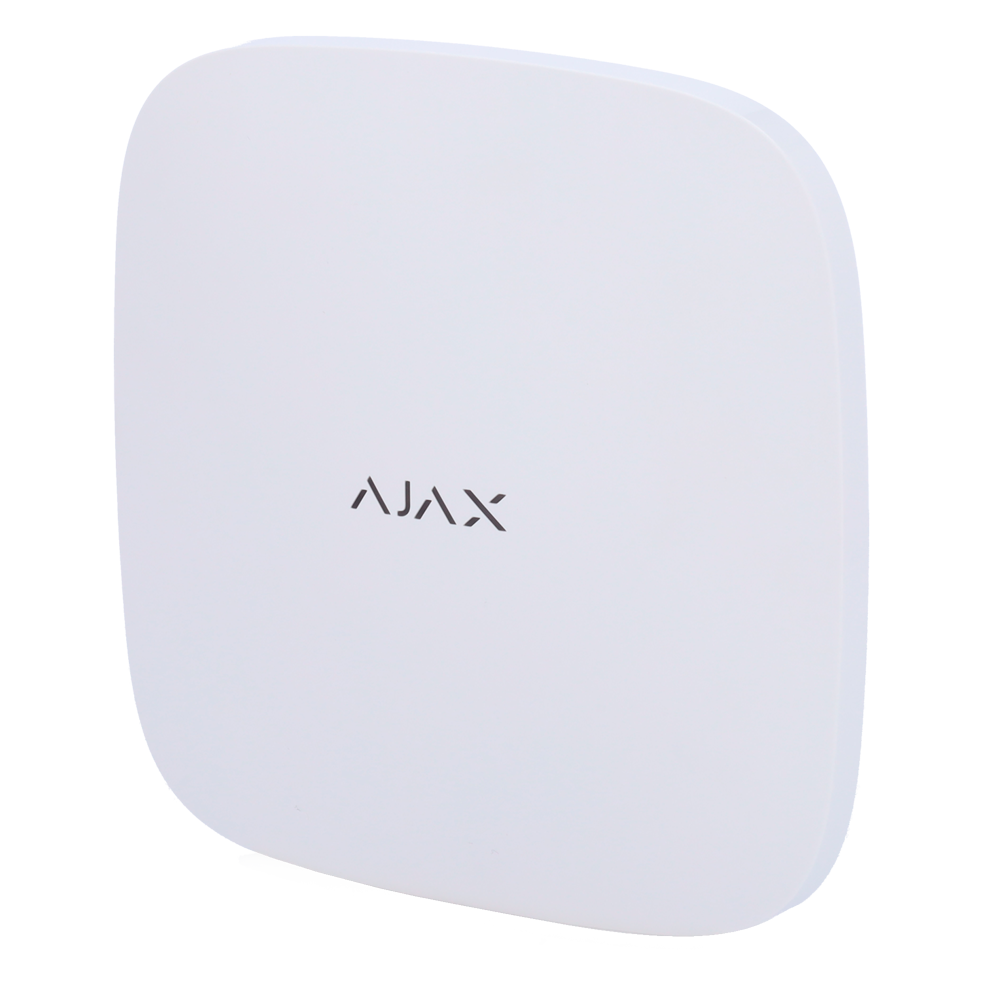

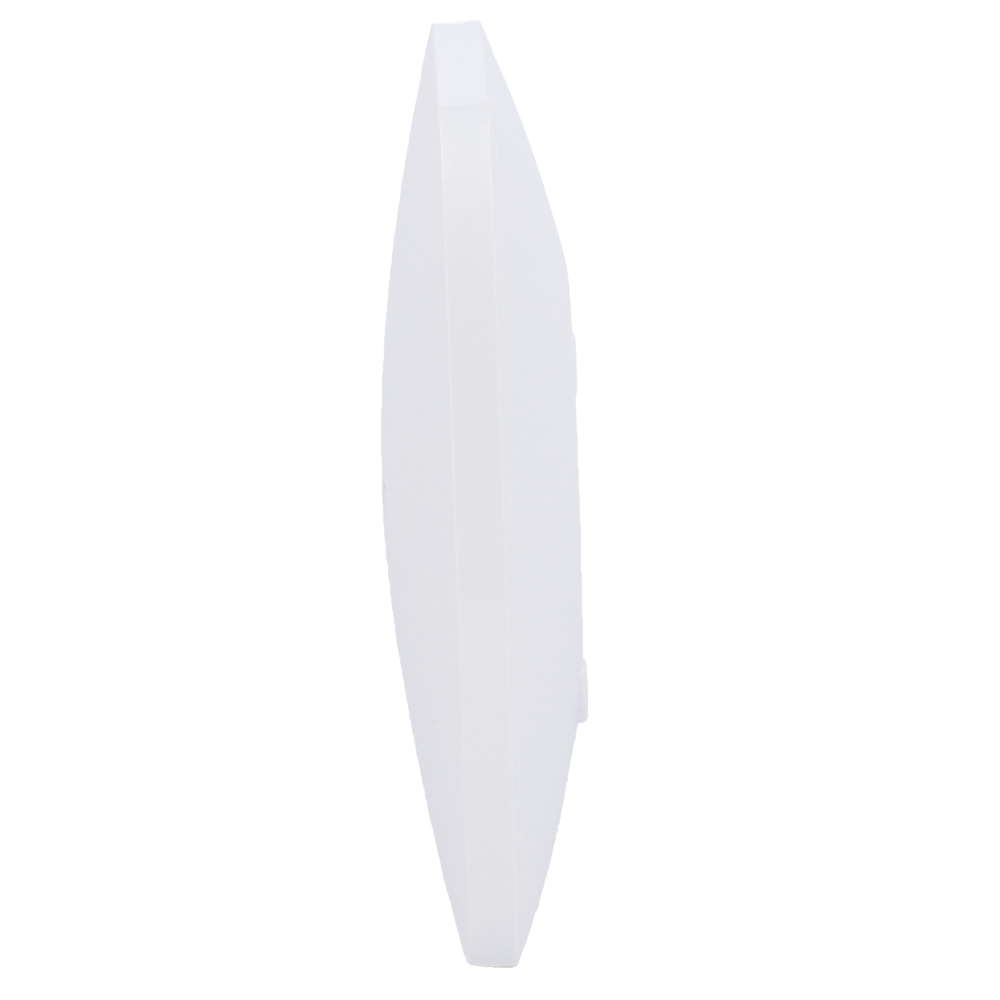

AJ-HUB-W

Professional alarm panel - Certificate Grade 2 - Ethernet and GPRS communication - 868MHz Jeweller Wireless - Up to 100 wireless devices - Mobile App and PC Software
Description

Wireless alarm control panel for professional installations both residential and office environments. The communication is done via Ethernet and/or GPRS. The bidirectional radio link between detectors and accessories uses its own in-house protocol called Jeweller, which works in the 868MHz frequency, and has obtained Grade 2 certification.

The wireless link has a high reliability due to its advanced Jeweller protocol with high security AES encryption. The unique instant and intelligent monitoring system detects inhibition of the signal identifying a specific downtime and in turn reduces maintenance costs as it significantly extends the life of the batteries of the detectors without compromising security. The wireless signal is able to cover distances up to 2 km in open space. It also includes features to ease the installation such as the Smart-Bracket or the simple linking of detectors to the alarm system.

It allows up to 100 wireless zones with the possibility of grouping these devices up to 9 different groups, where the different actions can be carried out; armed, partially armed, disarmed. These Ajax wireless devices have different possible configurations such as 24 hours zone, zone with time delay of entry or exit...

The AJ-HUB-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 15 hours.

The Ethernet communication for remote access is its main advantage both for the user and the installer as it allows connection through the software for PC AJAX PRO Desktop and mobile applications for iOS and Android Ajax Security Systems and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage the users and their permissions, add devices, group them in rooms and modify the confiigurations. The use of the cloud is compatible with dynamic IP without the need to open ports.

The Ajax users will enjoy multiple advantages, as they can receive reliable and instant notifications in both desktop software and mobile applications.

As an additional complement to the Ajax alarm system, from the mobile application you can add up to 10 IP cameras or video recorder channels to be able to verify the video stream live.


Specifications
Brand AJAX
Security grade Grade 2
RF frequency 868 MHz. Protocol via Jeweller wireless technology
Internal security Tamper-resistant opening
Internal siren No
Communication Ethernet / GPRS
Maximum devices 100
Video integration Up to 10 IP cameras or video recorder channels
Number or users Up to 50
Connection with CRA Contact ID / SIA
Housing material ABS plastic
Power AC 110~250 V, 50/60 Hz
Backup battery Duration up to 15 hours
Temp. operation +5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (D) mm
Contents

Control panel

Power supply cable

Ethernet Cable

User instructions
