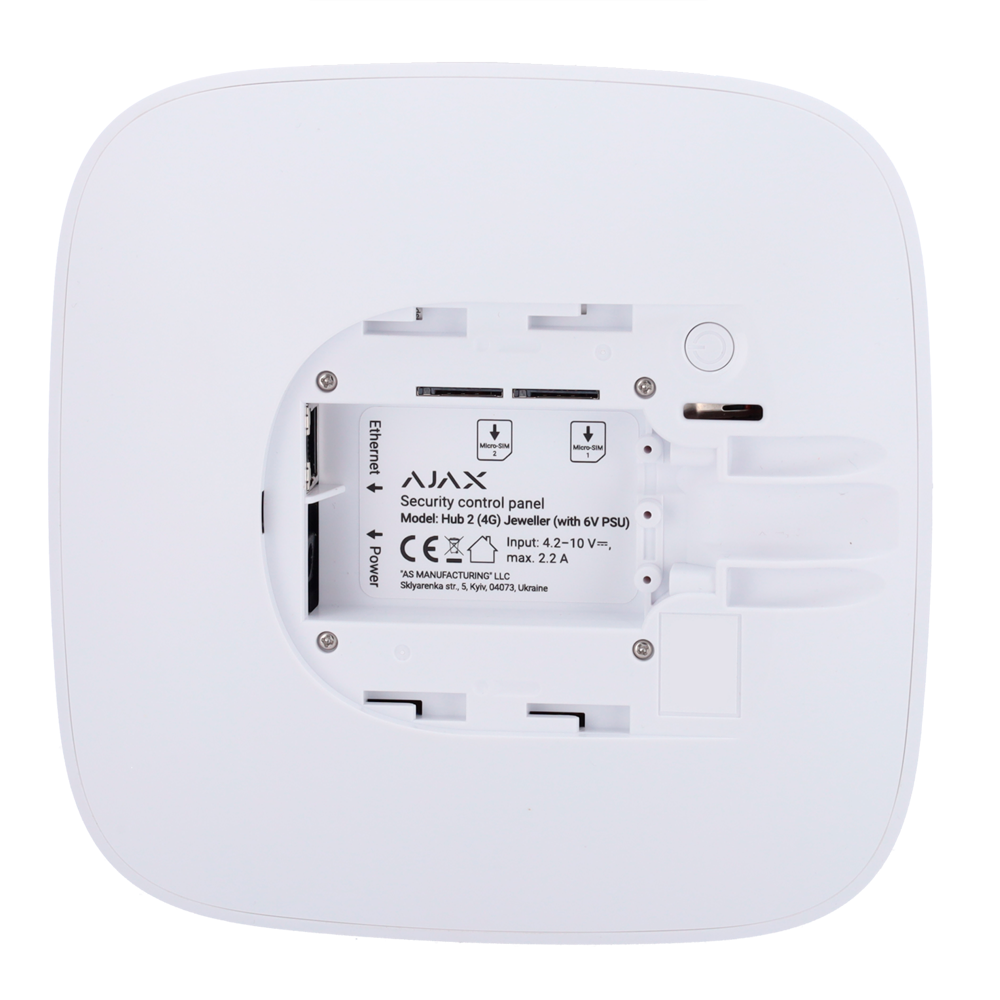

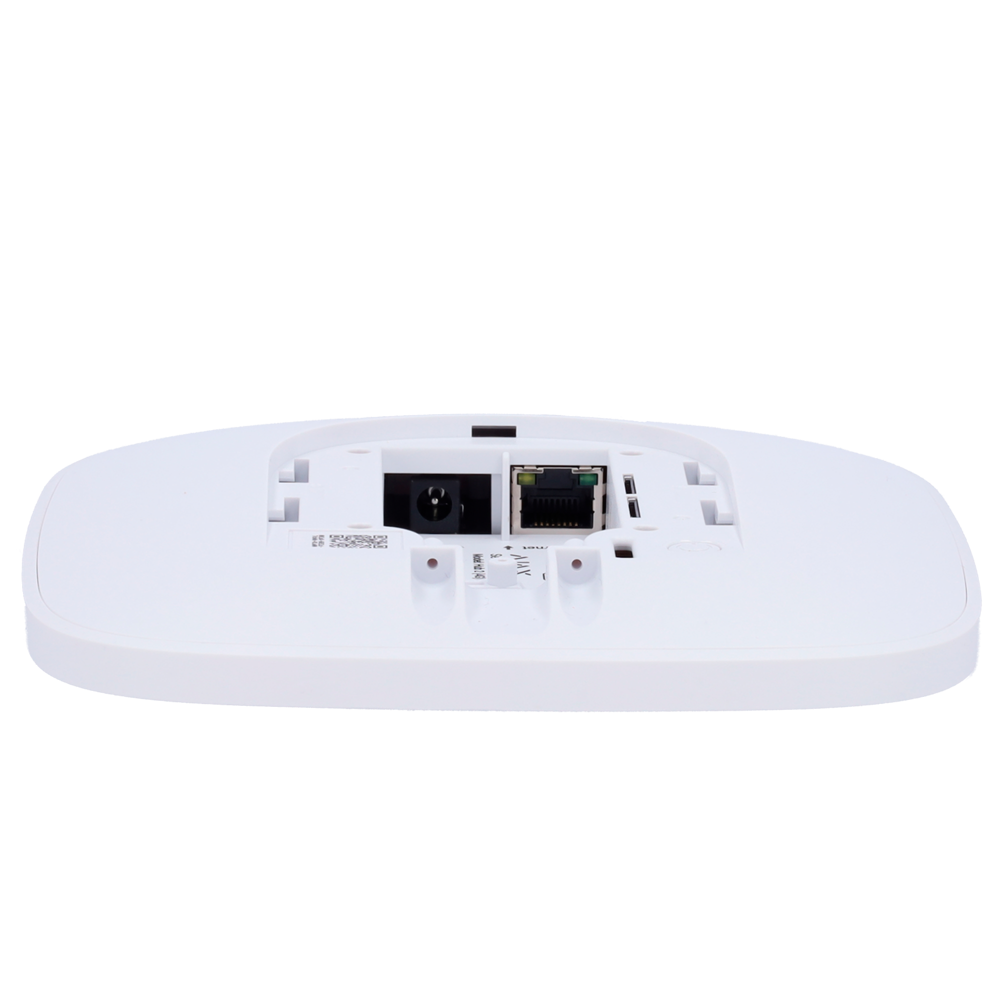

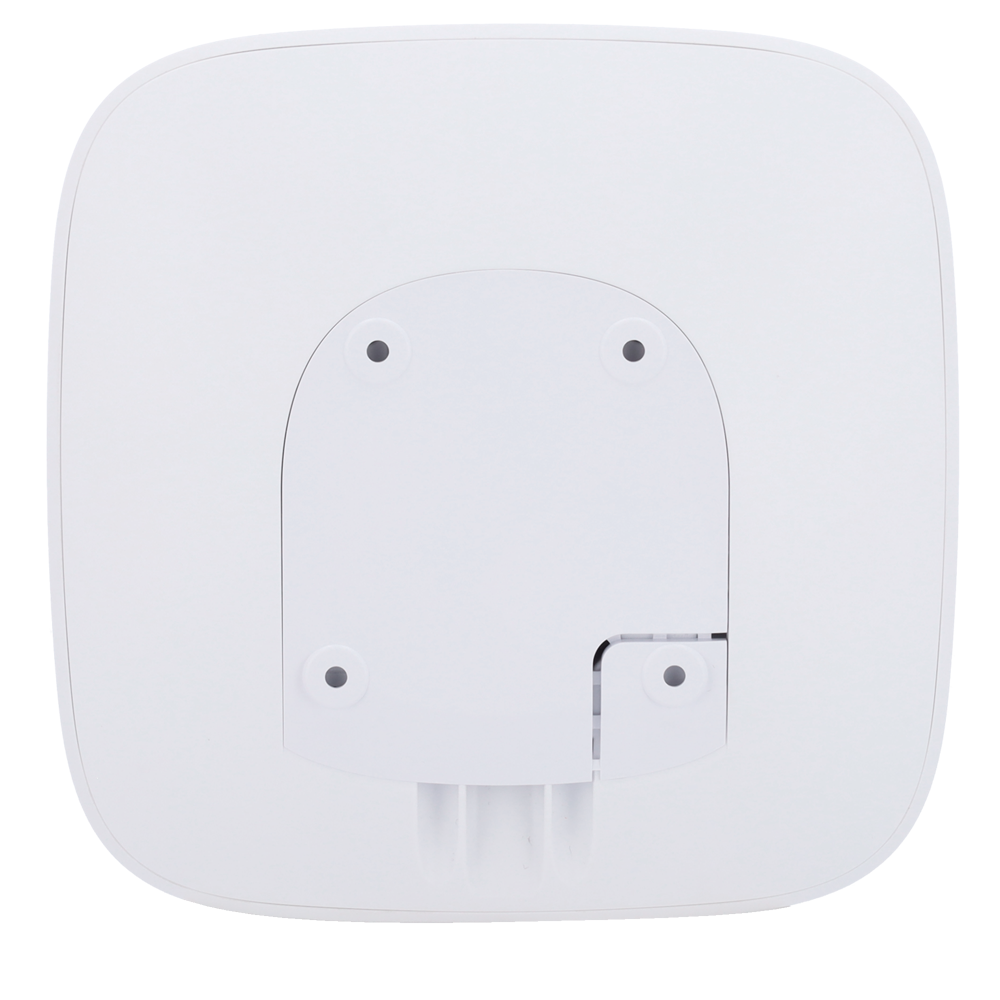

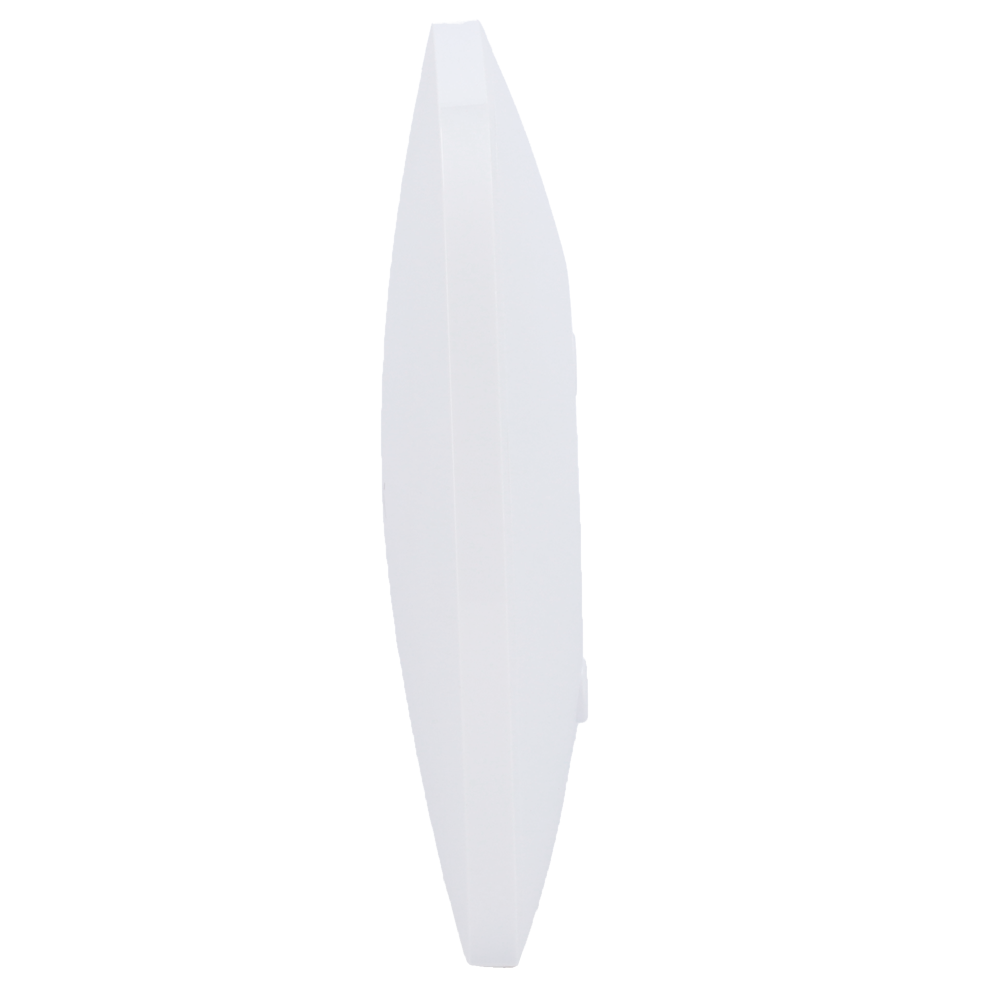

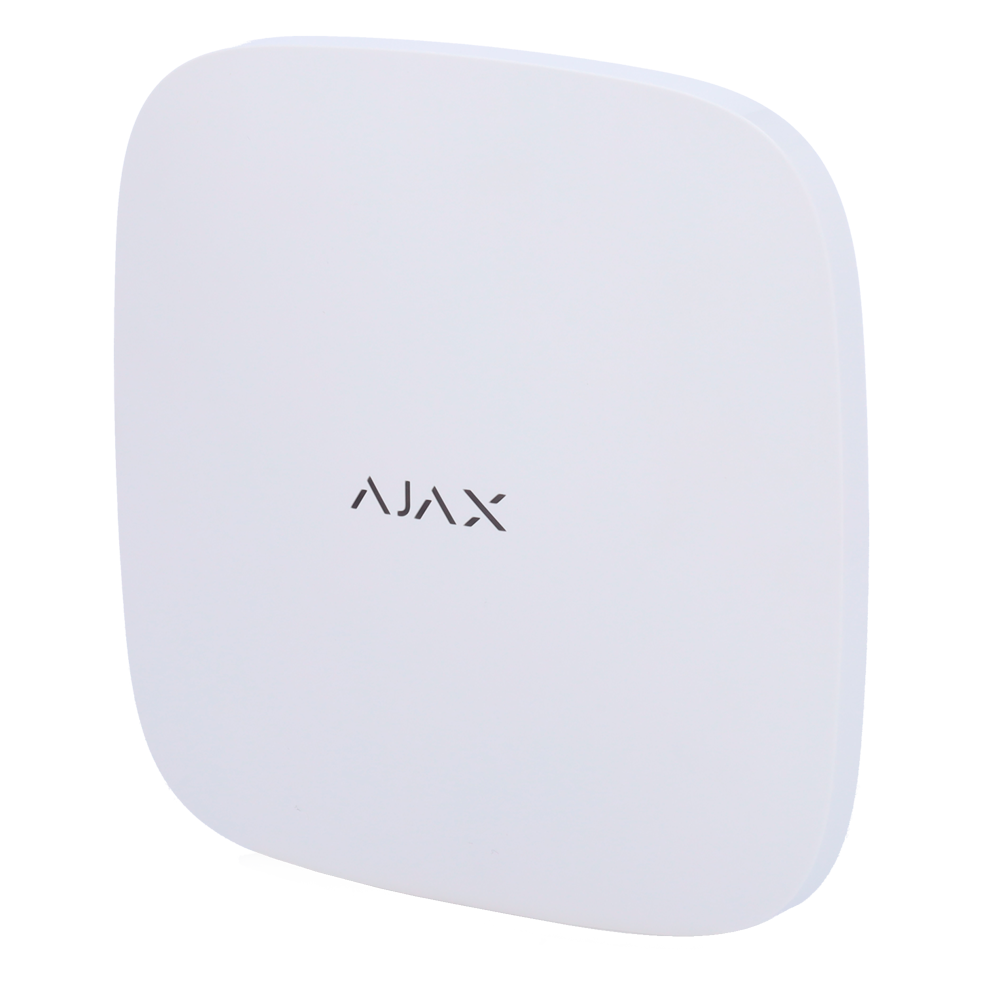

AJ-HUB2-4G-DC6V-W

Central de alarma profesional Grado 2 - Funcionamiento autónomo 6 V DC - Comunicación Ethernet y dual SIM 4G (GPRS) - Inalámbrico 868 MHz Jeweller y Wings - Hasta 100 dispositivos inalámbricos - 25 cámaras IP o canales de videograbador - App Móvil y Software PC
Description

Wireless alarm centre for professional installations without need for power supply, ensuring an autonomous operation powered at 6 V DC. Communication via Ethernet and/or GPRS with Dual SIM. The bidirectional radio link between detectors and accessories uses its own in-house protocol called Jeweller, which works in the 868MHz frequency, and has obtained Grade 2 certification.

The wireless link achieves great reliability thanks to its advanced Jeweller protocol with high security AES encryption. The unique instant and intelligent monitoring system detects inhibition of the signal identifying a specific downtime and in turn reduces maintenance costs as it significantly extends the life of the batteries of the detectors without compromising security. The wireless signal is able to cover distances up to 2 km in open space. It also includes features to ease the installation such as the Smart-Bracket or the simple linking of detectors to the alarm system.

It allows up to 100 wireless zones with the possibility of grouping these devices up to 9 different groups, where the different actions can be carried out; armed, partially armed, disarmed. These Ajax wireless devices have different possible configurations such as 24 hours zone, zone with time delay of entry or exit...

The AJ-HUB2-4G-DC6V-W panel has a 6 V DC power input and also a rechargeable backup battery with a life of up to 16 hours.

The triple Ethernet and dual SIM 4G GPRS communication is its main advantage for remote access, both for the user and the installer, as it allows connection through the AJAX PRO Desktop PC software and the mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the entire system, manage users and their permissions, add devices, group them into rooms and modify their configurations. The use of the cloud is compatible with dynamic IP without opening ports.

The Ajax users will enjoy multiple advantages, as they can receive reliable and instant notifications in both desktop software and mobile applications.

As an additional complement to the Ajax alarm system, from the mobile application you can add up to 25 IP cameras or video recorder channels to be able to verify the video stream live.

Specifications
Brand AJAX
RF frequency 868 MHz. Jeweller and Wings radio protocol
Security grade Grade 2
Internal security Tamper-resistant opening
Internal siren No
Communication Ethernet / Dual SIM 4G (GPRS)
Maximum devices 100
Video integration Up to 25 IP cameras or video recorder channels
Number or users Up to 50
Connection with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Housing material ABS plastic
Power 4.2-16 V DC
Maximum input current 2.2 A (@4.2 V DC) / 0.5 A (@16 V DC)
Output current 1.5 A
Average consumption per hour 95 mA
Backup battery Duration up to 16 hours
Temp. operation +5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (D) mm
Contents

Control panel

Connector CON280

User instructions
