Professional Grade 2 Alarm Panel - Ethernet connection and dual SIM GPRS - Wireless 868 MHz Jeweller and Wings - Up to 100 wireless devices - 25 IP cameras or video recorder channels - Mobile App and PC Software

Wireless alarm control panel for professional installations both residential and office environments. Communication via Ethernet and/or GPRS with Dual SIM. The bidirectional radio link between detectors and accessories uses its own in-house protocol called Jeweller, which works in the 868MHz frequency, and has obtained Grade 2 certification.

The wireless link achieves great reliability thanks to its advanced Jeweller protocol with high security AES encryption. The unique instant and intelligent monitoring system detects inhibition of the signal identifying a specific downtime and in turn reduces maintenance costs as it significantly extends the life of the batteries of the detectors without compromising security. The wireless signal is able to cover distances up to 2 km in open space. It also includes features to ease the installation such as the Smart-Bracket or the simple linking of detectors to the alarm system.

It allows up to 100 wireless zones with the possibility of grouping these devices up to 9 different groups, where the different actions can be carried out; armed, partially armed, disarmed. These Ajax wireless devices have different possible configurations such as 24 hours zone, zone with time delay of entry or exit...

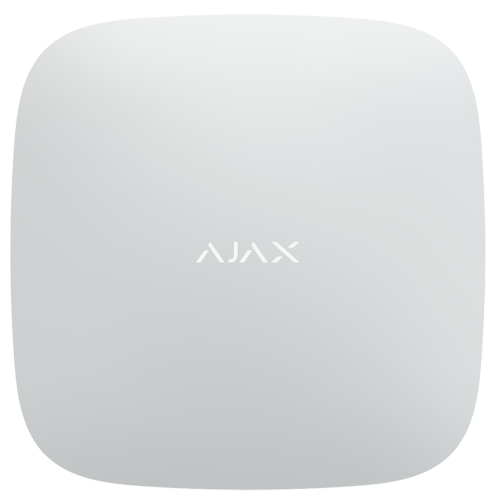

The panel AJ-HUB2-W has an AC power input 110-250 V and also a rechargeable backup battery with duration of up to 16 hours.

The triple Ethernet connection and dual SIM GPRS its the main advantage for remote access, both for the user and for the installer, as it allows connection through the PC software AJAX PRO Desktop and mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals). Through these applications it is possible to configure the whole system, manage users and their permissions, add devices, group them in rooms and modify their settings. The use of the cloud is compatible with dynamic IP without opening ports.

The Ajax users will enjoy multiple advantages, as they can receive reliable and instant notifications in both desktop software and mobile applications.

As an additional complement to the Ajax alarm system, from the mobile application you can add up to 25 IP cameras or video recorder channels to be able to verify the video stream live.

Brand AJAX
RF frequency 868 MHz. Jeweller and Wings radio protocol
Security grade Grade 2
Internal security Tamper-resistant opening
Internal siren No
Communication Ethernet / Dual SIM 2G (GPRS)
Maximum devices 100
Video integration Up to 25 IP cameras or video recorder channels
Number or users Up to 50
Connection with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Housing material ABS plastic
Power AC 110~250 V, 50/60 Hz
Backup battery Duration up to 16 hours
Temp. operation +5º C ~ 40º C
Dimensions 163 (H) x 163 (W) x 36 (D) mm

Control panel

Power supply cable

Ethernet Cable

User instructions
