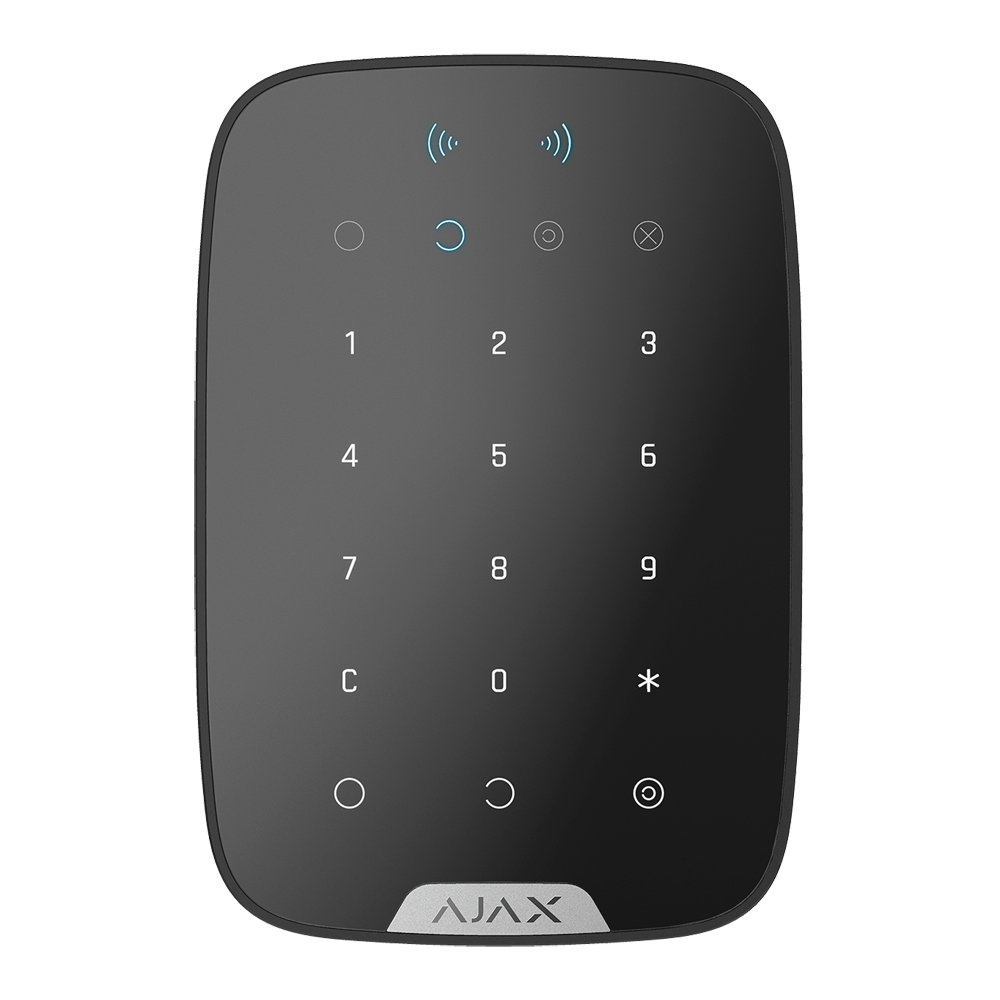

Wireless keyboard with card/tag reader
Instructions Manual
AJ-KEYPADPLUS-B
Separate keyboard with reader - Bidirectional - Grade 2 approved - 868MHz Jeweller Wireless - Armed, partial armed, disarmed and emergency - Power supply 4 AA batteries 1.5 V
Description
Ajax
Separate keypad with RFID card/tag reader
Grade 2 approved
Bidirectional
868MHz Jeweller Wireless
Internal antenna with free-space range of up to 1700m
Tamper-resistant opening
Allows full/partial arming/disarming by code, tags and cards
Used to protect the panel in a safe place
LED System Status indicator
Power 4 AA batteries (FR6) 1.5V Lithium (estimated life 3.5 years)
Interior use
Includes mounting bracket
Black colour
Specifications
| Brand | Ajax |
| Security grade | Grade 2 |
| Functions | Armed, disarmed, partially armed and emergency |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| RFID Technology | Mifare DESFire® EV1, EV2 (ISO14443-А 13,56 [%VAR%] MHz) |
| RFID Reading | Ajax Tag key rings and Ajax Pass cards |
| Compatibility | Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher) |
| Battery | 4 AA batteries (FR6) 1.5V Lithium. Approximate life 3.5 years (reader on) / 4.5 years (reader off) |
| Housing material | ABS plastic |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 165 (H) x 113 (W) x 20 (D) mm |
| Weight | 267 g |
