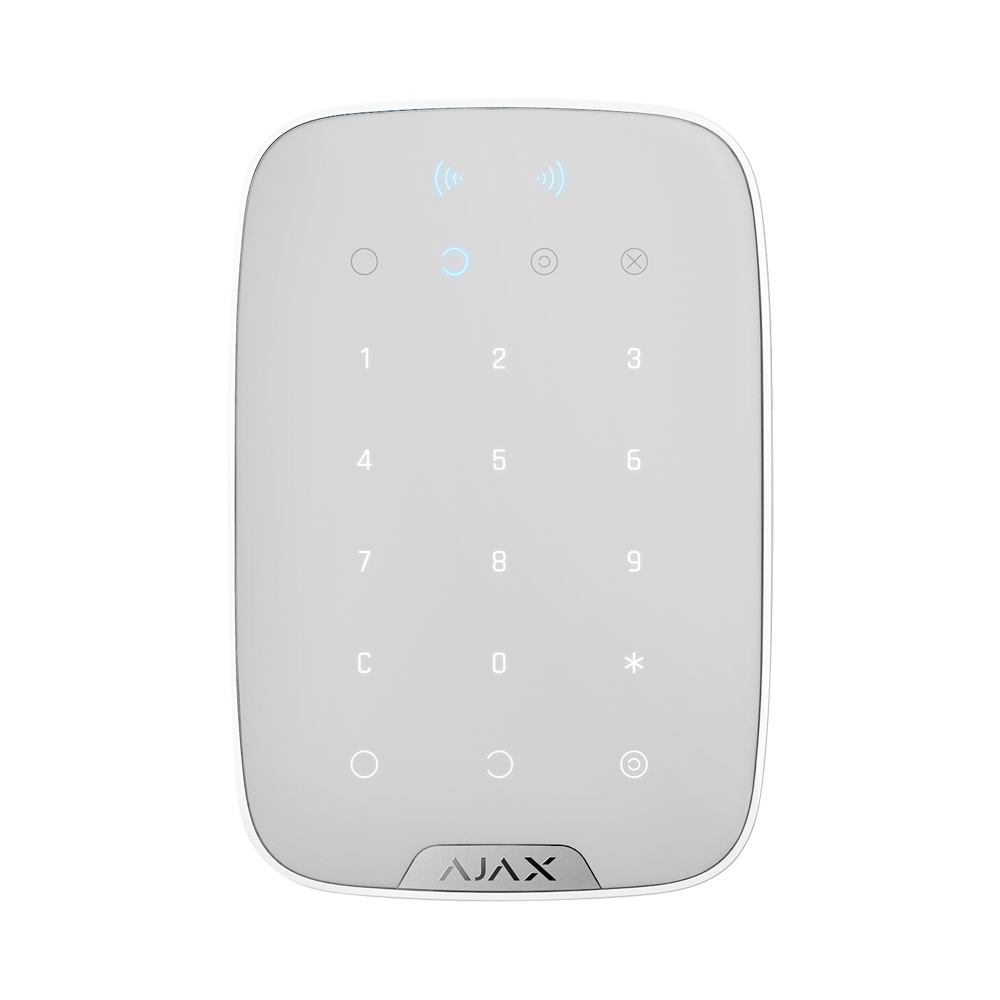

AJ-KEYPADPLUS-W

AJ-KEYPADPLUS-W

Separate keyboard with reader - Bidirectional - Grade 2 approved - 868MHz Jeweller Wireless - Armed, partial armed, disarmed and emergency - Power supply 4 AA batteries 1.5 V
Description

Ajax

Separate keypad with RFID card/tag reader

Grade 2 approved

Bidirectional

868MHz Jeweller Wireless

Internal antenna with free-space range of up to 1700m

Tamper-resistant opening

Allows full/partial arming/disarming by code, tags and cards

Used to protect the panel in a safe place

LED System Status indicator

Power 4 AA batteries (FR6) 1.5V Lithium (estimated life 3.5 years)

Interior use

Includes mounting bracket

White colour

Specifications
Brand Ajax
Security grade Grade 2
Functions Armed, disarmed, partially armed and emergency
Frequency 868 MHz Jeweller
Transmission distance ≤ 1700 m in open space
RFID Technology Mifare DESFire® EV1, EV2 (ISO14443-А 13,56 [%VAR%] MHz)
RFID Reading Ajax Tag key rings and Ajax Pass cards
Compatibility Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher)
Battery 4 AA batteries (FR6) 1.5V Lithium. Approximate life 3.5 years (reader on) / 4.5 years (reader off)
Housing material ABS plastic
Temp. operation -10º C ~ 40º C
Dimensions 165 (H) x 113 (W) x 20 (D) mm
Weight 267 g
Contents

Wireless keyboard with card/tag reader

Instructions Manual
