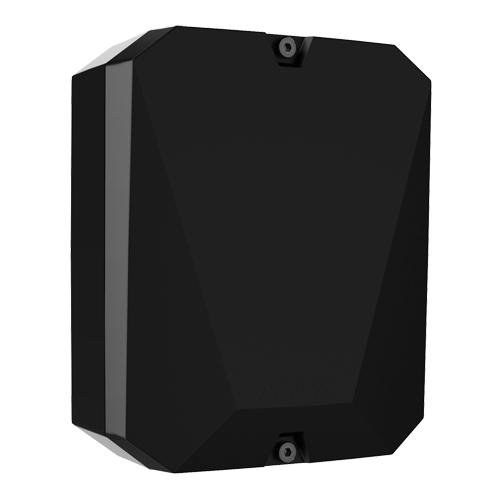

AJ-MULTITRANSMITTER-3EOL-B

AJ-MULTITRANSMITTER-3EOL-B

Multi-transmitter via radio - 868MHz Jeweller Wireless - Up to 18 Wired alarm and tamper inputs - Alarm configurable NC, NO, EOL, 2EOL, 3EOL - Double tamper anti-opening - Double power output 12V / 1A
Description

Ajax

Radio transmitter with multiple inputs

868MHz Jeweller Wireless

Bidirectional

Internal antenna range open space 2000 m

18 wired alarm and anti-sabotage tamper inputs

NO, NC, EOL, 2EOL, 3EOL alarm inputs

Inhibition detection

Tamper-resistant opening

Power supply output 12 V / 1 A

Power supply 220 VAC and backup battery 4 or 7 Ah (not included)

Compatibility with third-party detectors with wired alarm output

Compatibility of 3EOL function with Hub Plus, Hub 2 (2G and Hub 4G), Hub 2 Plus

Black colour

Specifications
Brand Ajax
Frequency 868 MHz Jeweller
Transmission distance ≤ 2000 m in open space
Anti-inhibition detection Available
Wired inputs Up to 18 (Intrusion, Fire, Medical Aid, Panic Button, Gas Alarm, Tamper Alarm, Malfunction, Flood, Custom)
Tamper input NC: Normally Closed
Alarm inputs NO, NC, EOL, 2EOL, 3EOL / Impulse or bistable
End-of-line resistor EOL From 1 kΩ to 15 kΩ with increments of 100 Ω
Cable length Up to 400 meters
Tamper-resistant opening Front and back
Power supply output Two outputs 12 V / 1 A (in total) for wired sensors
Compatibility Compatible with Hub, Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
Compatibility function 3EOL Compatible with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
Power AC 110~250 V, 50/60 Hz
Backup battery Battery 12 V / 4 or 7 Ah (not included)
Temp. operation -10 ºC ~ 40 ºC
Dimensions of the backup battery 150 (H) x 64 (W) x 94 (D) mm
Dimensions 238 (H) x 192 (W) x 100 (D) mm
Contents

Multi-transmitter via radio

Instructions Manual

Mounting material
