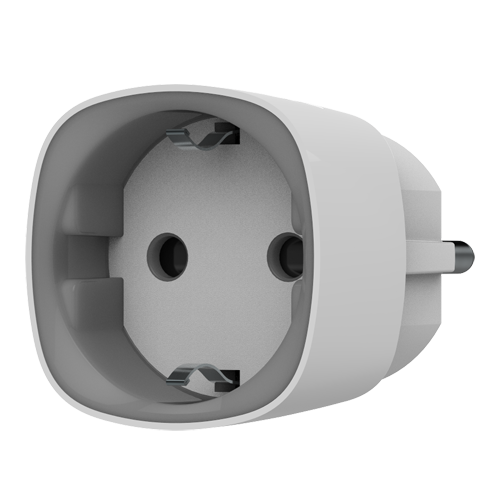

Intelligent socket with remote control
Instructions Manual
AJ-SOCKET-W
Intelligent socket with remote control - 868MHz Jeweller Wireless - Internal antenna range 1000 m - 230 VAC 50 Hz / Up to 2.5 kW (11 A) - Consumption meter - White colour
Description
Ajax
Intelligent socket with remote control
Bidirectional
868MHz Jeweller Wireless
Internal antenna range open space 1000 m
Power Input/Output 240 V AC
Maximum output power up to 2.5 kW (11 A)
Incorporates an indicator light according to the level of consumption
Allow measurement of power consumption
Compact design
White colour
Specifications
| Brand | Ajax |
| Transmission distance | ≤ 1000 m in open space |
| Frequency | 868 MHz Jeweller |
| Power supply input | AC 230 V / 50 Hz |
| Power supply output | AC 230 V, 50 Hz, max. 2.5 kW |
| Maximum output current | 11 A with protection / 13 A without protection |
| Protection | Voltage 184 - 253 V / Current 11 A / Temperature +85º C |
| Compatibility | F-type socket |
| Temp. operation | 0º C ~ 64º C |
| Dimensions | 65.5 (H) x 45 (W) x 45 (D) mm |
| Weight | 58 g |
