- 4in1 Box Camera
- User instructions
B581SW-5U4N1
55,07 €
59,22 €
59,22 €

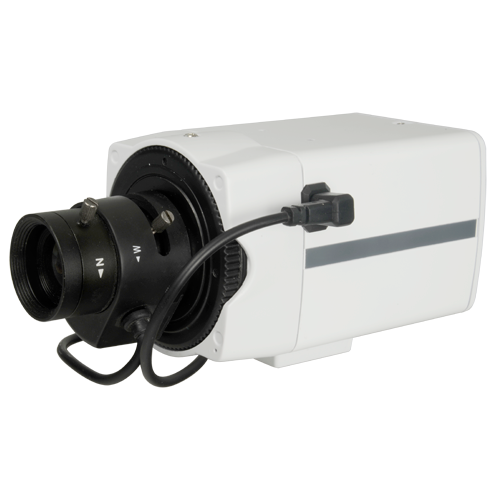

Box Camera HDTVI, HDCVI, AHD & Analogue - 5 MP (25/30 fps) - 1/2.8" 5 MP Sony Progressive Scan CMOS - Supports manual lenses and DC - Minimum illumination 0.01 Lux Color/ 0 Lux IR ON - OSD menu with WDR | Starlight
Description
- Box Camera HDTVI, HDCVI, AHD & Analogue
- ULTRA Range
- 1/2.8" 5.1 MP Sony Progressive Scan CMOS
- IMX335+EN781
- 5 Mpx (2592x1944)
- Output 4in1
- Accepts manual lens and DC iris (not included)
- Colour 0.01 Lux / B&W 0 Lux
- WDR
- Starlight
- 3DNR
- OSD Menu
- IR Cut
Specifications
| Range | 5 Mpx ULTRA |
| Image sensor | 1/2.8" 5 MP Sony Progressive CMOS |
| DSP | EN781 |
| Resolution | 5 Mpx, 1080p at 25/30 FPS; 720p at 25/30/50/60 FPS |
| Video output | 1 x switchable BNC HDTVI / HDCVI / AHD / CVBS / 1 x BNC (CVBS PAL system) |
| Minimum illumination | 0.01 Lux (Colour), 0 Lux (B/W) |
| Starlight | Support |
| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | WDR, Shutter control, SenseUp, ACE, AE, 3D-NR, AWB, AGC, Mask, MD, Defog |
| Lens | Manual / Auto Iris (DC); mount for lenses type C or CS (not included) |
| Power | DC 12 V / 1000 mA max. |
| Degree of protection | Suitable for interior or installed in housing for exterior |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 110 (D) x 65 (W) x 77 (H) mm |
| Weight | 300 g |
