BA608P-HD

38,96 €
41,89 €

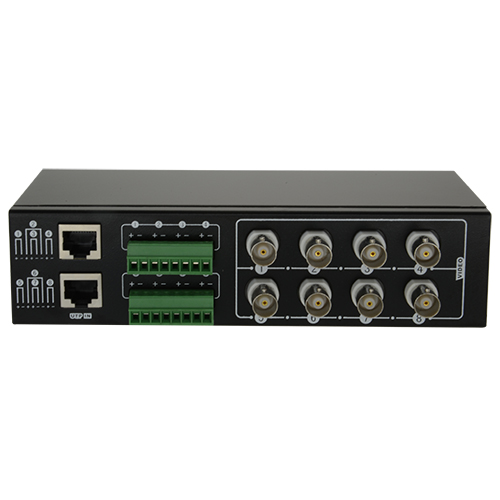

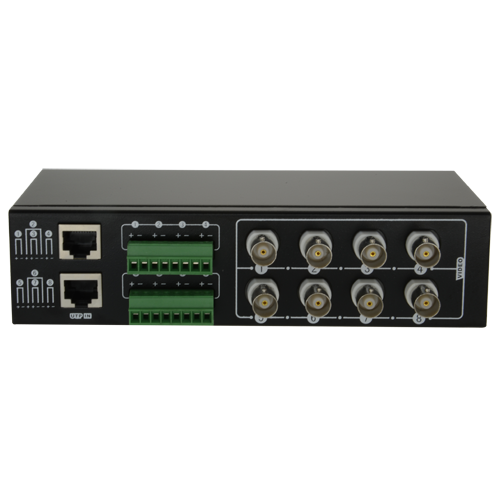

Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - 8 passive channels - Includes 8 BA612P-HAC - BNC and RJ45 connection - Range: 180 ~ 440 m - Rack mount possibility 19"
Description
  • Balun (transceiver)
  • Optimized for HD video: HDTVI / HDCVI / AHD and CVBS
  • 8 channels
  • Passive
  • BNC/RJ45
  • Video
  • Maximum range 440 m
  • Includes 8 individual baluns BA612P-HAC to the side of the camera
Specifications
Input Tx / Output Rx8 female BNC connectors for video
Output Tx / Input Rx2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5
BandwidthDC up to 42 MHz
Video formatNTSC, PAL, SECAM
ImpedanceBNC 75 Ω, UTP 100 Ω
DistanceHDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx)
PowerPassive (not required)
Temp. Functioning-20 ºC ~ 70º C
Dimensions45 (H) x 180 (W) x 85 (D) mm
Weight580 g
Contents
  • Balun 8 channels

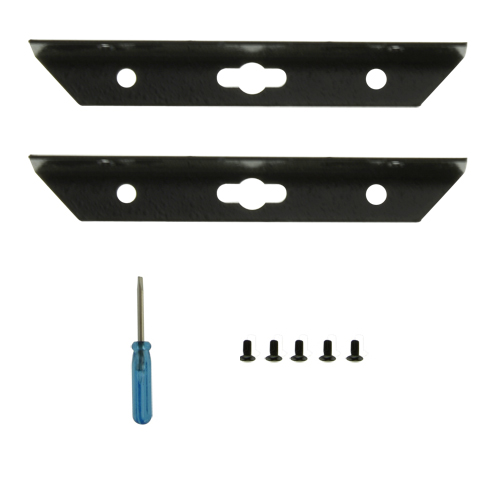

  • Installation material
  • 8 baluns BA612P-HAC

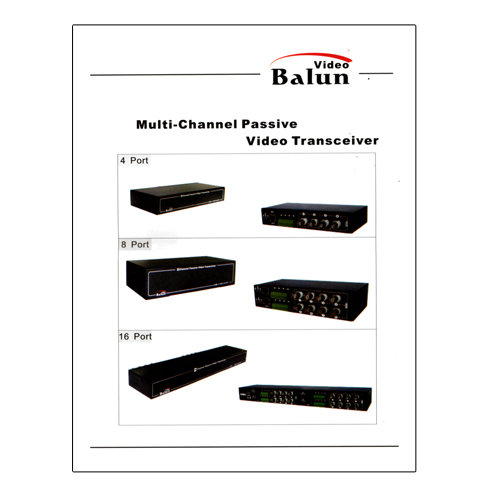

  • Instructions
