Contents
- Balun 4 channels
- Installation material
- 4 baluns BA612P-HAC
- Instructions
BA614P-HAC
19,88 €
21,38 €
21,38 €
Video Balun for HDTVI / HDCVI / AHD / CVBS - 4 passive channels - Includes 4 BA612P-HAC - BNC and RJ45 connection - Range: 180 ~ 440 m
Description

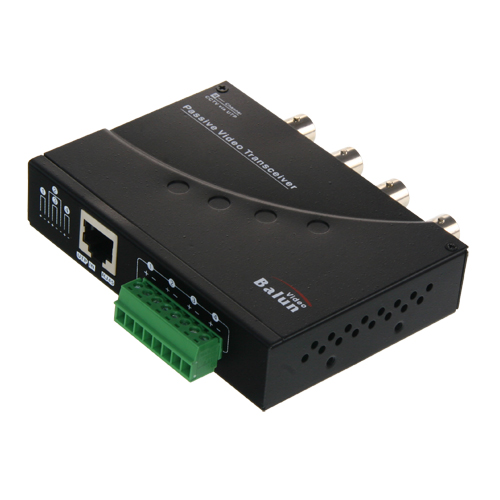

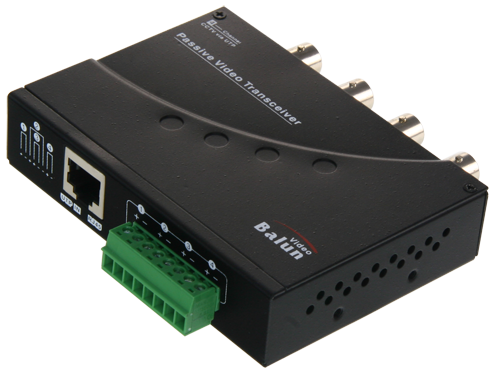

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.
The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.
It also has a connector for UTP cable, which works with RJ45 or with clamps for 4 contacts +/-, for a wired cable connection.
The maximum length between the end that connects to the camera and the end that connects to the video output is :
- HDTVI 720p - 200 m
- HDTVI 1080p - 300 m
- HDCVI 720p - 400 m
- HDCVI 1080p - 200 m
- AHD 720p - 300 m
- AHD 1080p - 300 m
- AHD 4 MP - 300 m
- HDTVI 4 MP 100 m
- HDCVI 4 MP 200 m
- HDTVI 4K 100 m
- HDCVI 4K 200 m
Rack mount possibility 19".
Specifications
| Input Tx / Output Rx | 4 female BNC connectors for video |
| Output Tx / Input Rx | 1 connector RJ45 or 4 connectores with clamps for the UTP-cable CAT5 |
| Bandwidth | DC up to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Transmission distance | HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/200/200 m (720p/1080p/4 MP), CVBS 300 m |
| Power | Passive (not required) |
| Dimensions | 25 (H) x 102 (W) x 90 (D) mm |
| Weight | 200 g |
