- Active transceiver

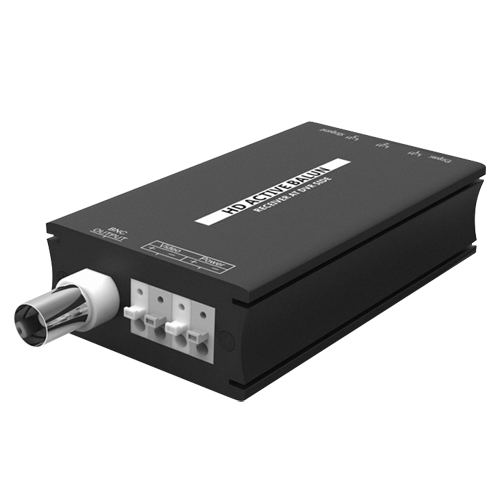

BA615A-RX
27,53 €
29,60 €
29,60 €
Active transceiver - Optimized for HDTVI / HDCVI / AHD - 1 video channel - BNC/UTP 4 pins - Range: 400 ~ 700 m - Receiver / Compatible with BA615A-TX
Description
- Balun (transceiver)
- Optimized for HD video: HDTVI / HDCVI / AHD
- 1 channel
- Active
- Power 12VVDC
- BNC/UTP 4 pins
- Video
- Maximum range 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
- 1 receiver
- Compatible with BA615A-TX
Specifications
| Number of channels | 1 channel |
| Power | 12VDC / 1A (Passive) |
| Video Input/Output | BNC (male) |
| Transmission distance | 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD) |
| Twisted pair connector | Connector with 4 pins |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output Impedance | 100 Ohm |
| Cable category | UTP category 5e/6 |
