BA616P-HD

65,87 €
70,83 €
Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - 16 passive channels - Includes 16 BA612P-HAC - BNC and RJ45 connection - Range: 180 ~ 440 m
Description

Passive video transceiver by twisted pair of 16 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

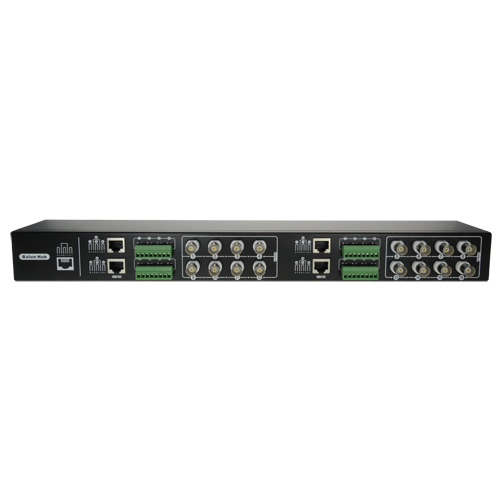

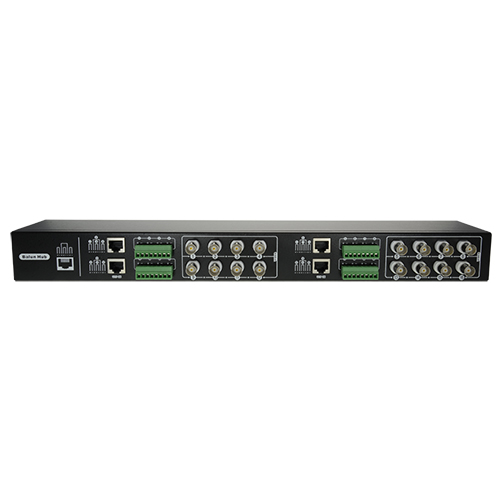

The adapter has 16 BNC connectors for connecting to a DVR. Includes 16 individual baluns BA612P-HAC to connect to each camera.

Moreover, it has 4 connectors for UTP cable, either by two RJ45 or by 4 clamps of 4 +/- contacts, for connection of the cable by wires.

The maximum length between the end that connects to the camera and the end that connects to the video output is: HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) and AHD 320/250/200 m (720p/1080p/5Mpx).

Rack mount possibility 19".

Specifications


Input Tx / Output Rx 16 female BNC connectors for video
Output Tx / Input Rx 4 connectors RJ45 or 16 clamp connectors for UTP cable CAT5
Bandwidth DC up to 42 MHz
Video format NTSC, PAL, SECAM
Impedance BNC 75 Ω, UTP 100 Ω
Distance HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K)
AHD 320/250/200 m (720p/1080p/5Mpx) CVBS 400 m
Power Passive (not required)
Dimensions 45 (H) x 430 (W) x 85 (D) mm
Weight 1250 g
Contents
  • Balun 16 channels

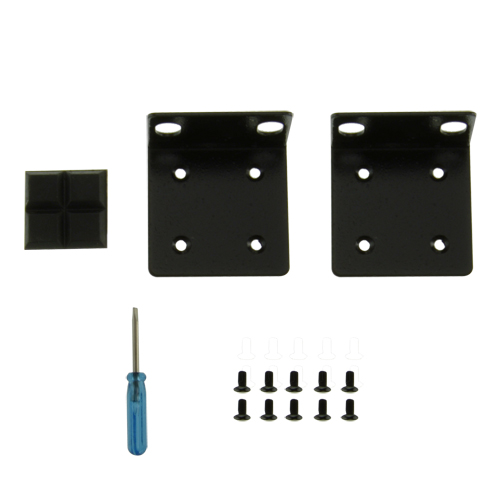

  • Installation material
  • 16 baluns BA612P-HAC

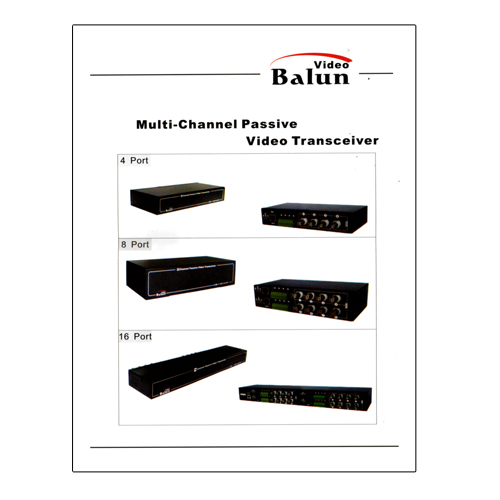

  • Instructions
