Contents
- Access biometric reader
- 4 plugs and 4 screws for mounting
- Connection cables
- User instructions

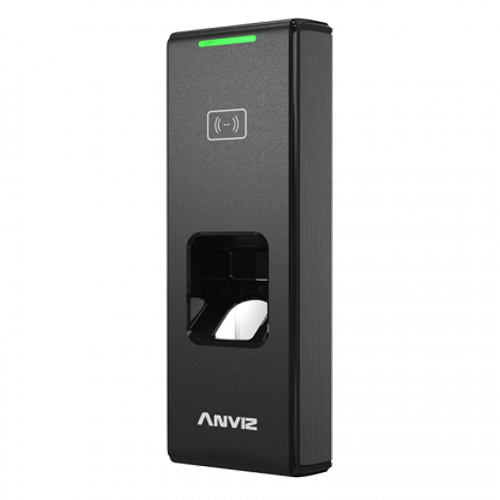

C2SLIM-BT-WIFI
115,32 €
128,13 €
128,13 €
ANVIZ autonomous biometric reader - Fingerprints & RFID - 3.000 recordings / 50.000 records - TCP/IP, WiFi, Bluetooth, RS485, miniUSB, Wiegand 26 - Integrated controller - Suitable for outdoors IP65
Description
- Anviz
- Standalone biometric access control
- Fingerprint identification and/or RF EM card
- Capacity 3.000 fingerprints/cards, 50.000 records
- Communication TCP/IP, WiFi, Bluetooth, RS485, miniUSB and Wiegand 26
- Integrated controller (Door sensor, Push-button & Relay)
- Suitable for exterior IP65
- ANVIZ CrossChex complete management software included
Specifications
| Processor | Industrial High Speed CPU |
| Algorithm | BioNano V10 |
| Optical fingerprint sensor | Optical Sensor |
| Activation sensor | Infrared auto-activation |
| Scan area | 22 x 18 mm |
| Resolution | 500 DPI |
| Identification time | < 0.5 Sec. |
| Capacity | Up to 3.000 fingerprints or cards |
| Records | Up to 50.000 |
| Identification modes | Fingerprint, Card & Fingerprint+Card |
| Proximity card | EM RFID |
| PC communication | TCP/IP, WiFi, Bluetooth miniUSB and RS485 |
| Inputs | Door sensor, opening button |
| Outputs | Wiegand 26, Output relay NO/NC |
| Voices | Spanish, English, French and Portuguese. Change of language via WebServer with browser |
| Protection | Suitable for exterior IP65 |
| Power | DC 12 V / 150 mA |
| Dimensions | 25 (D) x 50 (W) x 159 (H) mm |
| Weight | 450 g |
