- Bobbin of cable
CA6-100-H
38,23 €
41,11 €
41,11 €

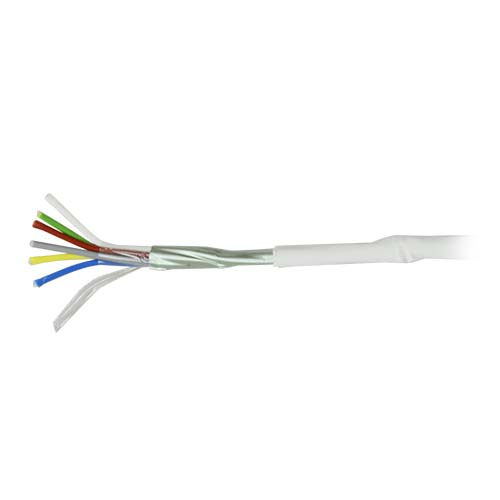

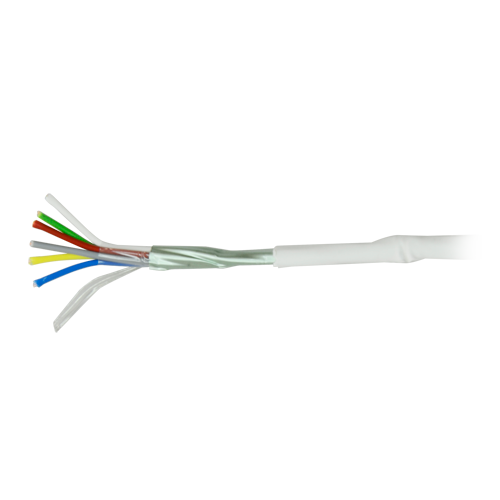

6 conductors - Flexible electrolytic Copper conductor - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR certificate Cca -1sb, a1, d2 - Low loss
Description
- Bobbin of cable
- 100 m
- Alarm
- 6 conductors
- Flexible electrolytic copper inner conductor 0,22 mm
- PE isolation
- CuSn Aluminium polyester screen + drain
- Polyolefin cover FRLSHF 4.1 mm
- CPR certificate Cca -1sb, a1, d2
- Certified EN 50575
- Halogen free
Specifications
| Length | 100 m |
| Interior conductor | Flexible electrolytic copper AWG25 0,22 mm |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminum polyester + CuSn drain |
| External cover | Polyolefin FRLSHF 4.1 mm |
| Number of conductors | 6 signal |
| Conductivity | <10μS/mm |
| Resistance | 106 Ohm/km signal |
| Temp. operation | 0º C ~ 70º C |
| Certification | CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
