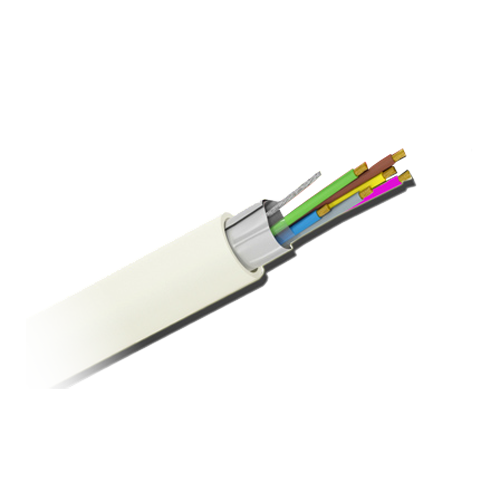

CA8-100-H

CA8-100-H

48,36 €
52,00 €
8 conductors - Conductor Flexible electrolytic copper Class 5 - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR certificate Cca -1sb, a1, d2 - Low loss
Description
  • Bobbin of cable
  • 100 m
  • Alarm
  • 8 conductors
  • Inner conductor Class 5 Flexible electrolytic copper 0,22 mm
  • PE isolation
  • Screen Aluminium polyester with 96% coverage+CuSn drainage
  • Polyolefin cover FRLSHF 6.7 mm
  • Halogen free
  • CPR certificate Cca -1sb, a1, d2
Specifications
Length100 m
Interior conductorFlexible electrolytic copper AWG25 0,22 mm Class 5
IsolationPolyethylene
Formation of the wiresTwisted
ScreenAluminium polyester with 96% coating+CuSn drainage
External coverPolyolefin FRLSHF 6.7 mm
Number of conductors8 signal
Conductivity<10μS/mm
Resistance106 Ohm/km signal
Temp. operation0º C ~ 70º C
CertificationCPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2
Contents
  • Bobbin of cable
