- Bobbin of cable

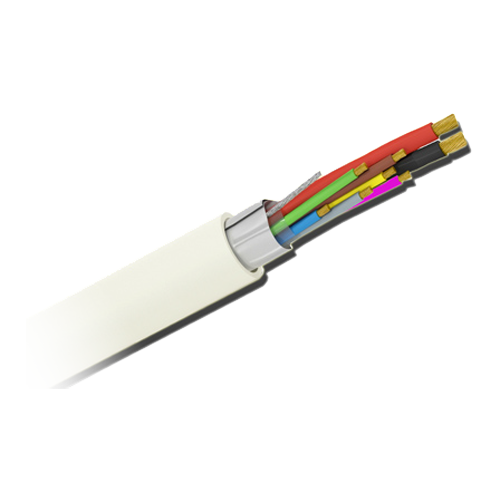

CA8P2-100-H
68,46 €
73,61 €
73,61 €
8 signal + 2 power supply conductors - Conductor Flexible electrolytic copper Class 5 - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR certificate Cca -1sb, a1, d2 - Low loss
Description
- Bobbin of cable
- 100 m
- Alarm
- 8 conductors + 2 power cables
- Inner conductor Class 5 Flexible electrolytic copper 0,22 mm
- Flexible electrolytic copper supply conductor 0,75 mm
- PE isolation
- Screen Aluminium polyester with 96% coverage+CuSn drainage
- Polyolefin cover FRLSHF 8.3 mm
- Halogen free - CPR certificate Cca -1sb, a1, d2
Specifications
| Length | 100 m |
| Interior conductor | Flexible electrolytic copper AWG25 0,22 mm |
| Power supply wire | Flexible electrolytic copper AWG19 0,75 mm |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminium polyester with 96% coating+CuSn drainage |
| External cover | Polyolefin FRLSHF 8.3 mm |
| Number of conductors | 8 signal + 2 power supply |
| Conductivity | <10μS/mm |
| Resistance | 106 Ohm/km signal / 27 Ohm/km power |
| Temp. operation | 0º C ~ 70º C |
| Certification | CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
