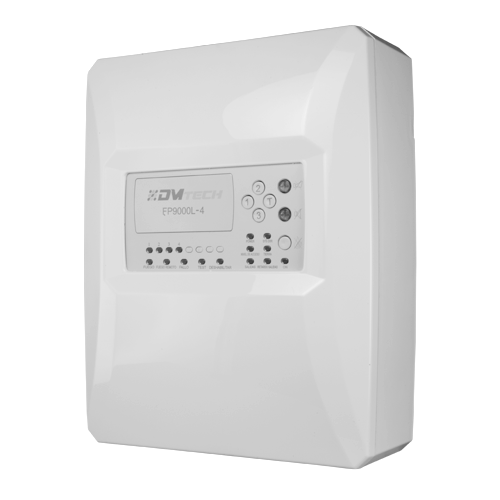

DMT-FP9000L-4-PT

DMT-FP9000L-4-PT

4 Zone Conventional Fire Alarm Panel - 2 Siren output - 2 alarm and fault outputs and 2 configurable relay outputs - Repeater output - Up to 30 detectors per zone - End-of-line resistance auto detection
Description
  • DMTECH
  • Conventional fire alarm panel of 4 zones
  • Certificate EN54-2 and EN54-4
  • 2 independent siren outputs
  • 2 auxiliary alarm and fault outputs
  • 2 configurable relay outputs
  • Individual output for repeaters
  • Capacity for 2 12V batteries
  • 4 access levels ((3 user and 1 manufacturer)
Specifications
Primary power supplySwitching source 187-252V AC 50-60 Hz 65W max.
Backup power supply2 batteries 12VDC (up to 5 Ah). Ensures minimum 90 hours duration.
Number of zones4 zones, up to 30 detectors by area.
Siren outputs2 siren outputs 24VDC. Independent and monitored open collector outputs
Relay outputs4 Relay outputs: [VAR%] Alarm output, 1 Fault output and 1 configurable relay outputs. All support 30VDC 3A max.
End of line resistanceAreas fully monitored by end-of-line resistance (4.7K)
Auxiliary Output Voltage24VDC. Protected by resettable electronic fuse 1.85A
Protection IndexIP30
Temperature-5ºC~+45ºC
Material and colourABS, colour: White
Dimensions310 x 240 x 80 mm
Weight1,3Kg
Recommended cableFire cable with a minimum section of 1.0mm (18AWG).
Contents
  • Panels
  • Battery cables
  • Fusible
  • End of line resistors
