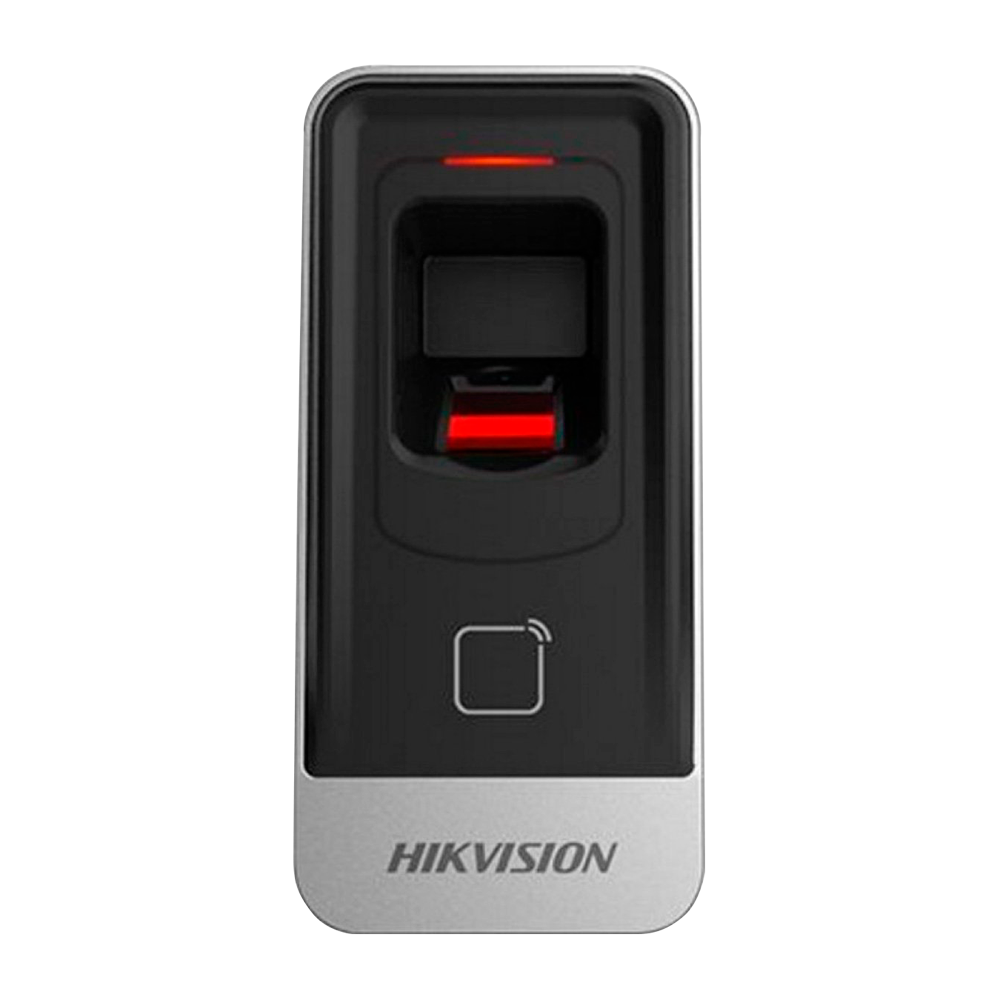

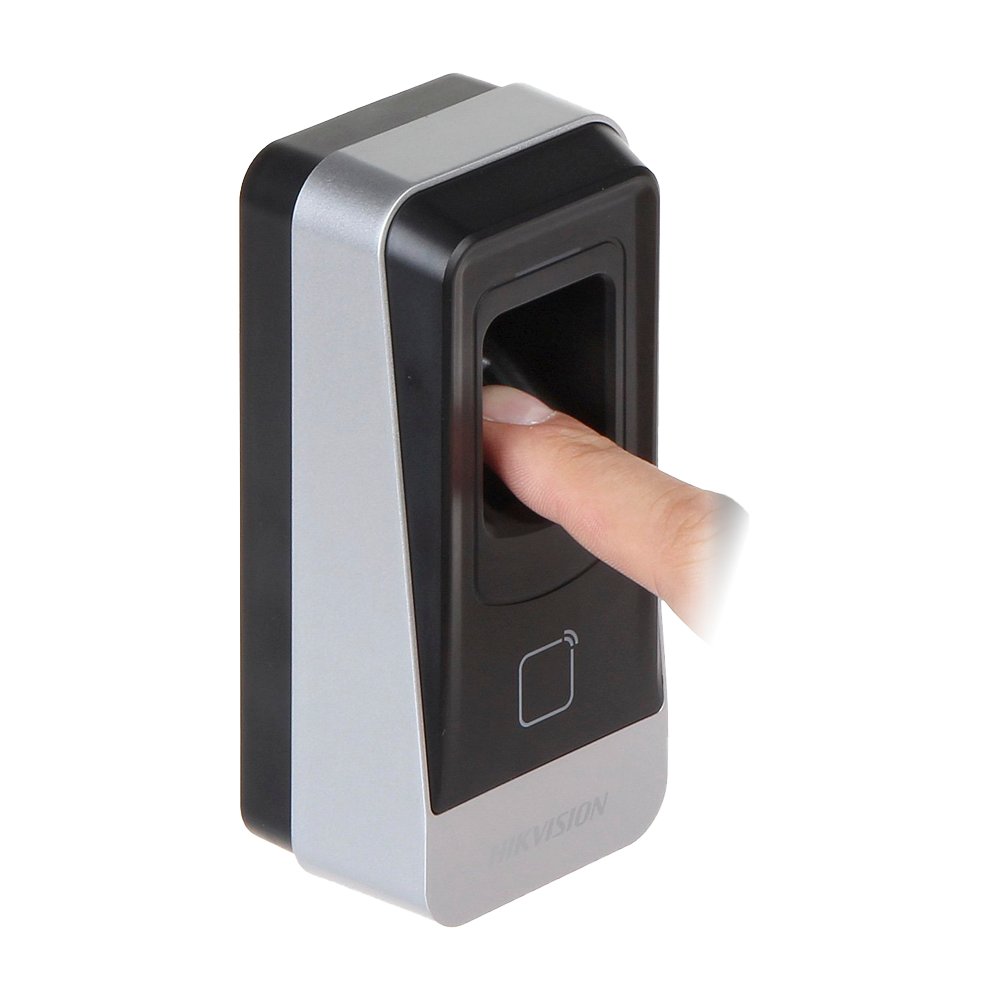

DS-K1201AMF

65,87 €
70,83 €

Access reader - Fingerprint and MF card access - LED and acoustic indicator - RS485 - Compatible with SF-AC2x05/06-WRIP - Suitable for exterior IP65

Availability

2-5 Days

Buy

Description

Hikvision

Access reader for controller

Access by fingerprint and/or MF card

Optical sensor

LED indicator

RS485 Communication

Suitable for exterior IP65

Compatible with Safire SF-AC2x05-WRIP and SF-AC2x06-WRIP controllers

Specifications

Brand	Hikvision
Model	DS-K1201AMF
Sensor	Optical CMOS fingerprint module
Capacity	5.000 fingerprints
Activation sensor	Infrared auto-activation
Read time	< 1 sec
Card reading distance	3 cm ~ 10 cm
Identification modes	Footprint and/or MF card (13.56 MHz)
Outputs	RS485, buzzer for status indication, tamper
Compatibility	Controllers SF-AC2x05-WRIP and SF-AC2x06-WRIP
Power	DC 12 V / 70 mA máx.
Degree of protection	Suitable for exterior IP65
Temp. operation	-40º C ~ +75º C
Dimensions	62 (W) x 132 (H) x 44 (D) mm
Weight	190 g

Contents

Hikvision biometric reader

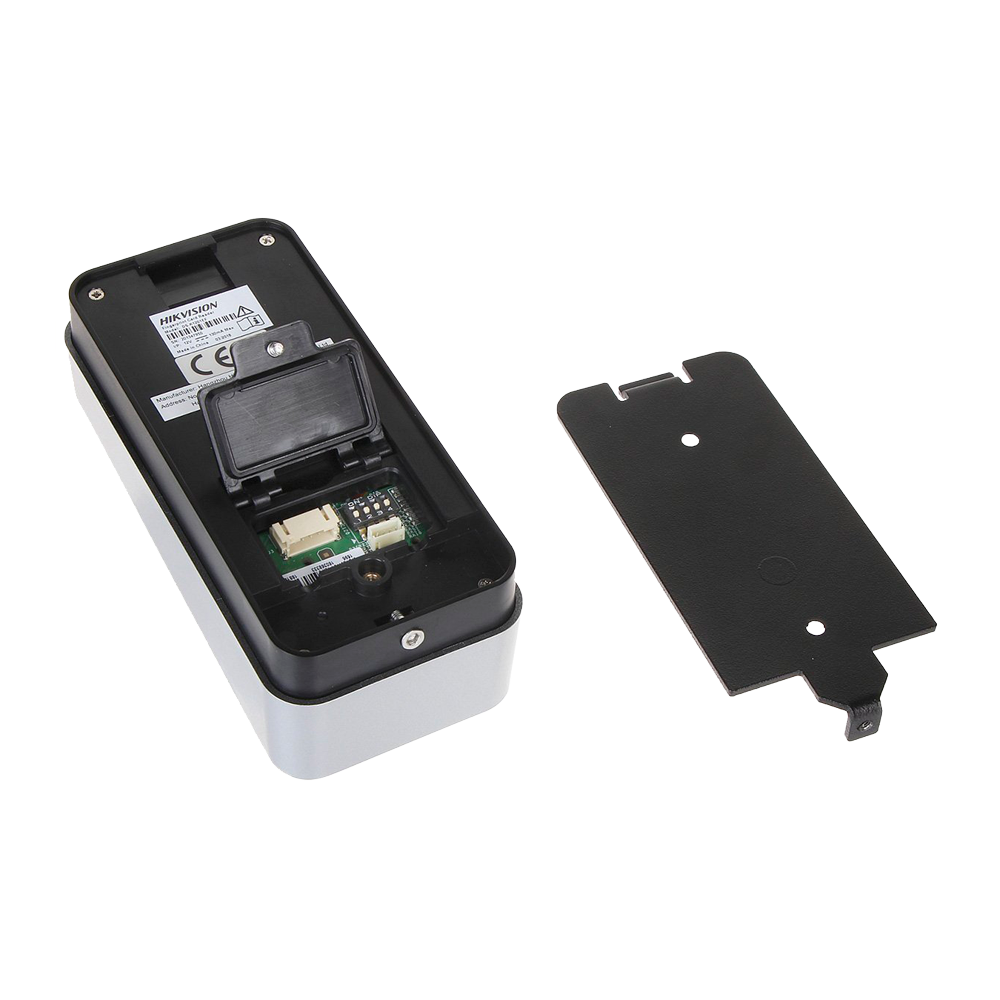

Mounting material

User instructions
