Contents
- Hikvision elevator controller
- Mounting material
- User instructions

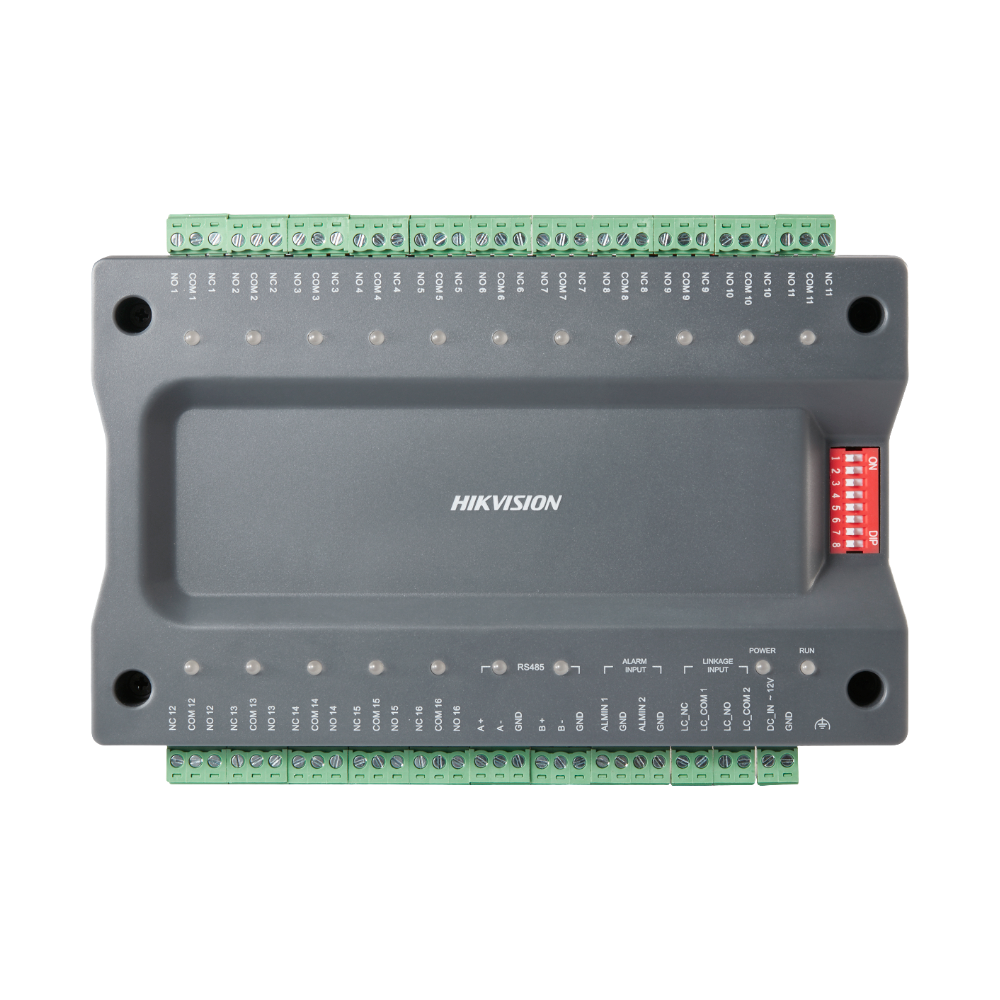

DS-K2M0016A
294,71 €
316,89 €
316,89 €
Slave controller for elevators - Output of 16 relays - 3 operating modes - Configuration with DIP switch - RS485 for communication - Required master plate DS-K2210
Description
- Hikvision
- Slave controller for elevators
- Communication RS485 with master controller
- 16 relay outputs
- Operating modes: button, elevator call and auto button
- DIP switch for configuration
- 2 alarm inputs
- Need master panel DS-K2210
Specifications
| Brand | Hikvision |
| Model | DS-K2M0016A |
| Hardware CPU | 32bit |
| Outputs | 16 x relay outputs |
| Inputs | 2 x RS485, 1 x tamper |
| Power | DC power supply 12 V (not included) |
| Temp. operation | -40º C ~ +70º C |
| Operating Humidity | 0% ~ 90% (no condensation) |
| Mounting | On rail |
| Dimensions | 105 (W) x 167 (H) x 30 (D) mm |
