Contents
- Pair of transceivers
- Manual

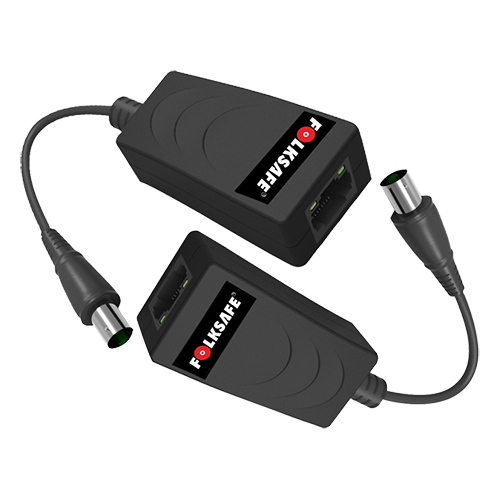

EOC-200
15,47 €
17,19 €
17,19 €
IP extender via coaxial cable - Passive | No power required - Transmitter and receiver - Allows transmission 1 IP channel - Maximum distance 200m (RG59) or 250m (RG6) - Bandwidth up to 100 Mbps
Description
- Ethernet Extender via Coax
- Passive receiver and transmitter
- Transmit 1 IP link(s)
- Maximum distance 200-250 m at 10 Mbps
- No power supply required
Specifications
| Connection over coaxial | BNC male/female connector |
| Power | Not required |
| Datarate | 10 Mbps |
| Distance over coaxial | 200m between extenders (250m with cable RG6) |
| Ethernet connection | Port RJ45 |
| Ethernet signal | 10Mbps Base-T |
| Impedance | UTP:100 Ohm/Coax:75 Ohm |
| Protection | Overvoltages up to 2 kV second IEC61000-4-5 |
| Operating conditions | -20℃~85℃ Temperature | 95% Humidity |
| Dimensions | 22 (H) x 82 (W) x 115 (D) mm / 90 g |
