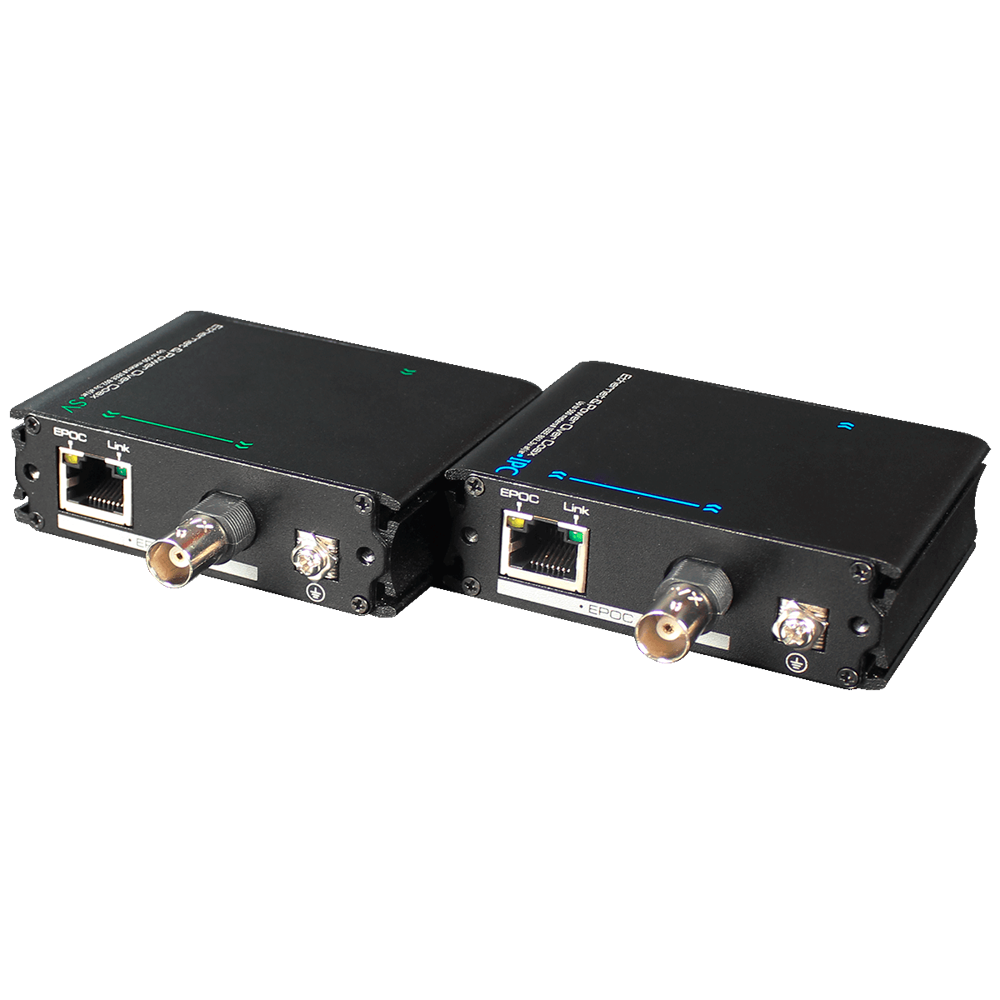

EOC-500-POE

EOC-500-POE

137,10 €
147,42 €
IP extender coaxial cable | PoE - Passive - Transmitter and receiver - Allows transmission 1 IP channel - Maximum distance 500 - Bandwidth up to 100 Mbps
Description
  • Extender Ethernet over Coaxial and Ethernet Cable
  • Passive transmitter and receiver
  • Allows to transmit 1 IP channel and PoE power IEEE802.3af/at
  • Maximum distance 500 m via coaxial cable and 400 m via Ethernet cable at 100 Mbps bidirectional
  • No power supply required
Specifications
PowerPOE or power adapter
PoEIEEE802.3u ,IEEE 802.3af, 802.3at standard;
Supply voltage48~578 V DC
Consumption< 2 W
Datarate10/100 Mbps with DIP switch
Distance over coaxial500 m via coaxial cable and 400 m via Ethernet cable
Ethernet connectionPort RJ45
Ethernet signal10/100Mbps Base-T
Status indicatorsYellow: power OK | Green: ethernet signal transmission OK |Green/yellow, signal transmission OK
Transmitted PoE Power4.5 W to 500 meters of coaxial cable, 5 W to 400 meters of coaxial cable
Protection IEC61000-4-5 Level 3
Operating conditions-40℃~75℃ Temperature | 95% Humidity
Dimensions63.2 x 82 x 25 mm
WeightIPC:153 g ; SV: 154 g
Contents
  • Pair of transceivers
  • Manual
