Bobbin of cable

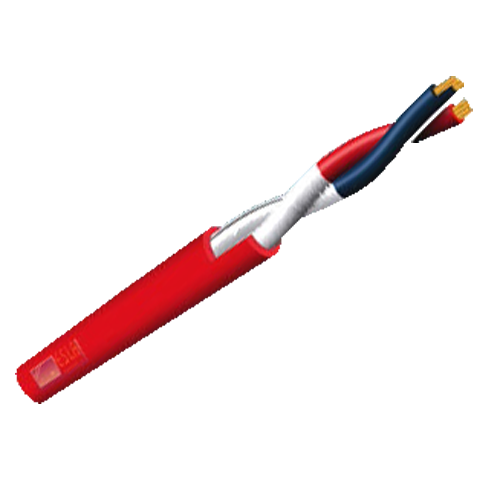

FC15-100-C
Shielded braided cable drum - Bobbin of 100 meters - Copper conductor 2x1.5mm2 - CPR certificate Cca -1sb, a1, d1 - Certified EN 50575 - Resistance 13.9 Ω/Km
Description
Twisted pair cable bobbin
100 m
Specially for fire
Shielding
2 conductors
Inner conductor Flexible polished copper Class 5 1.5mm2
25 turns/meter
Halogen-free insulation 2.8mm
Screen Aluminium Mylar+Drain CuSn
Cover Polyolefin EVA 6.6 mm
Certified EN 50575
Resistance 13.9 Ω/Km
Specifications
| Length | 100 m |
| Interior conductor | Flexible polished copper Class 5 1.5mm2 |
| Isolation | Halogen-free 2.8mm |
| Colour | Red and Black - more than 25 turns/meter |
| Screen | Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20 |
| External cover | Halogen Free EVA Polyolefin 6.6mm |
| Resistance | 13.9 Ω/Km |
| Working voltage | 500V |
| Capacity | 86 pF/m |
| Working voltage | +20º ~ +70º |
| Certification | CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
