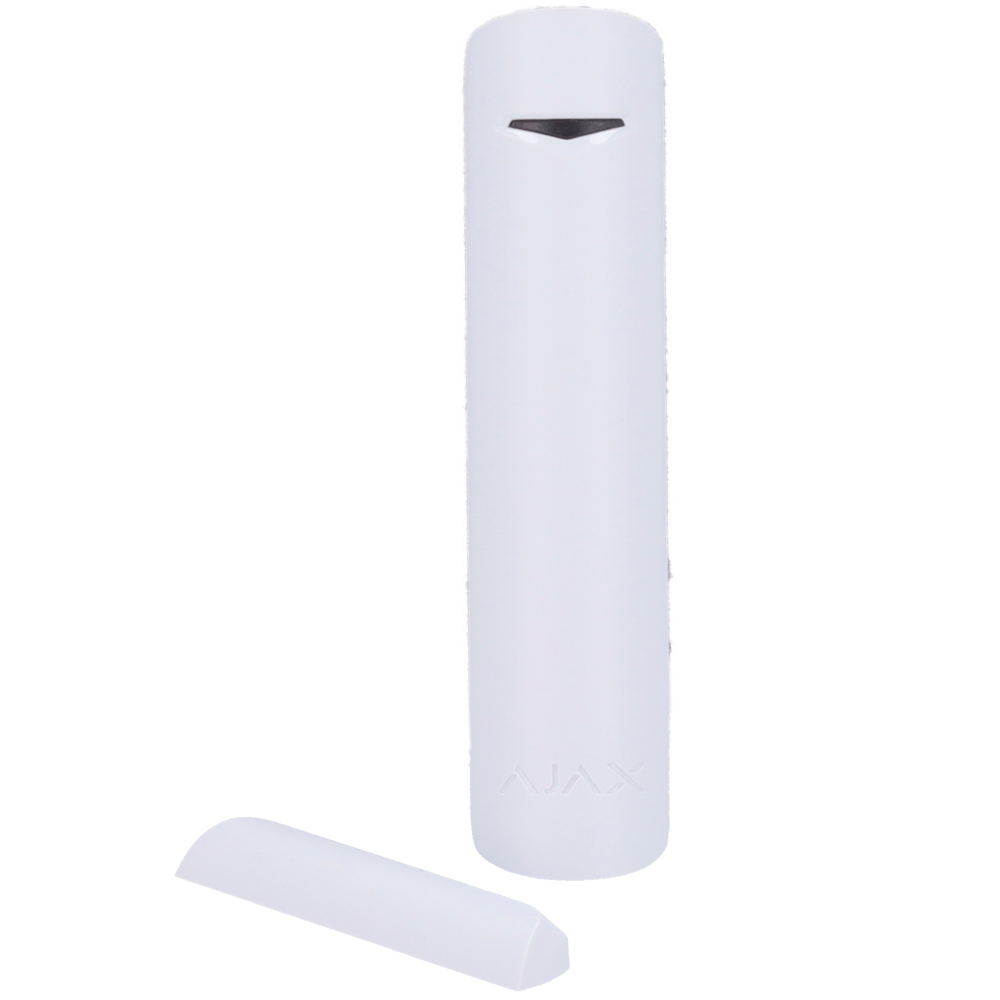

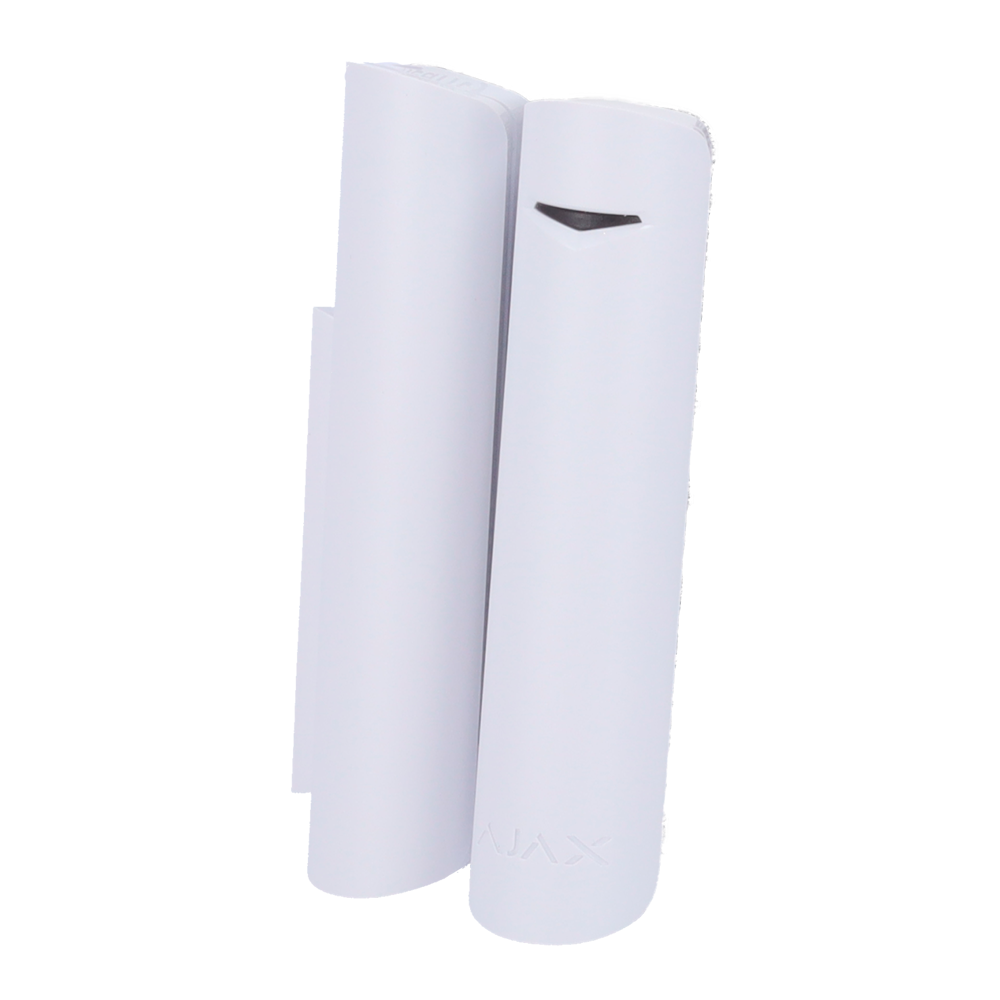

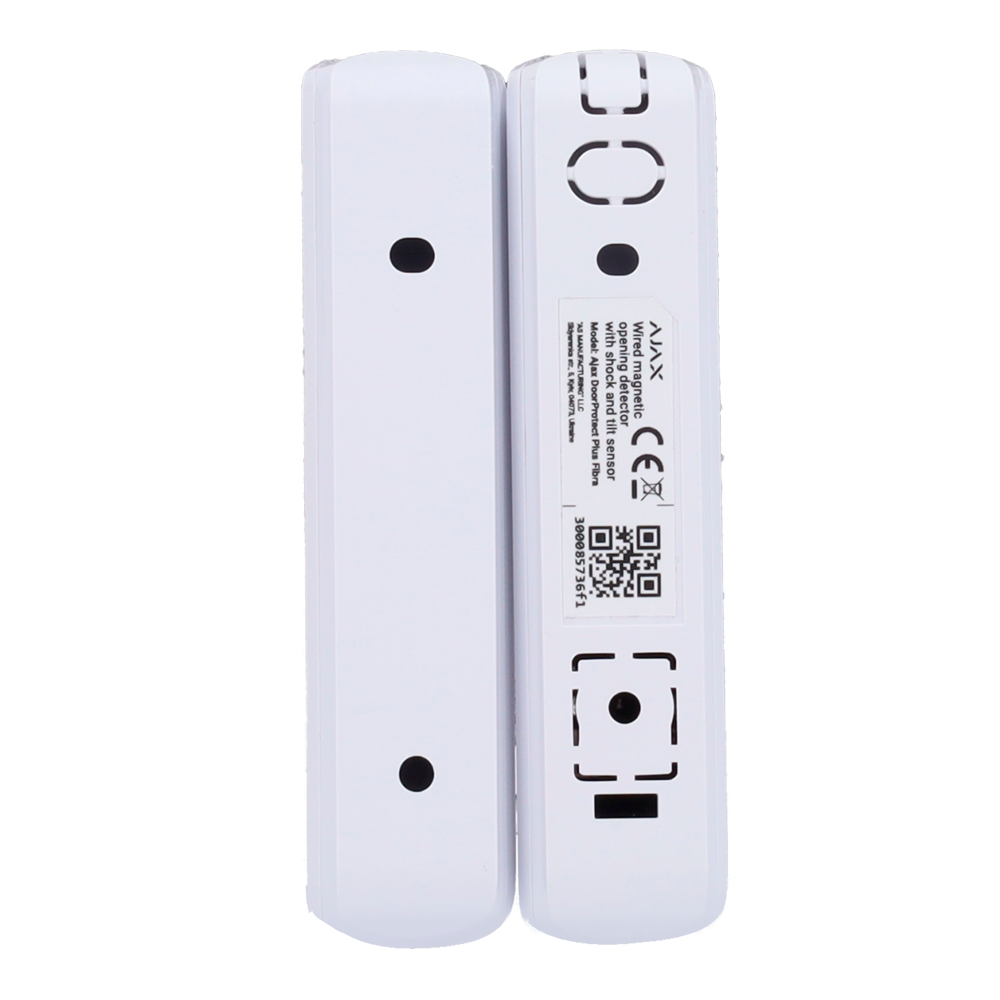

FIBRA-DOORPROTECTPLUS-W
Door/window magnetic contact - Detector with tilt and shock sensor - Grade 2 approved - Fibra Protocol - 1 wired NC sensor input - Large and small magnet
Description
Ajax Fibra
Magnetic door/window contact with vibration and tilt detection
Fibra Protocol
Grade 2 approved
Bidirectional

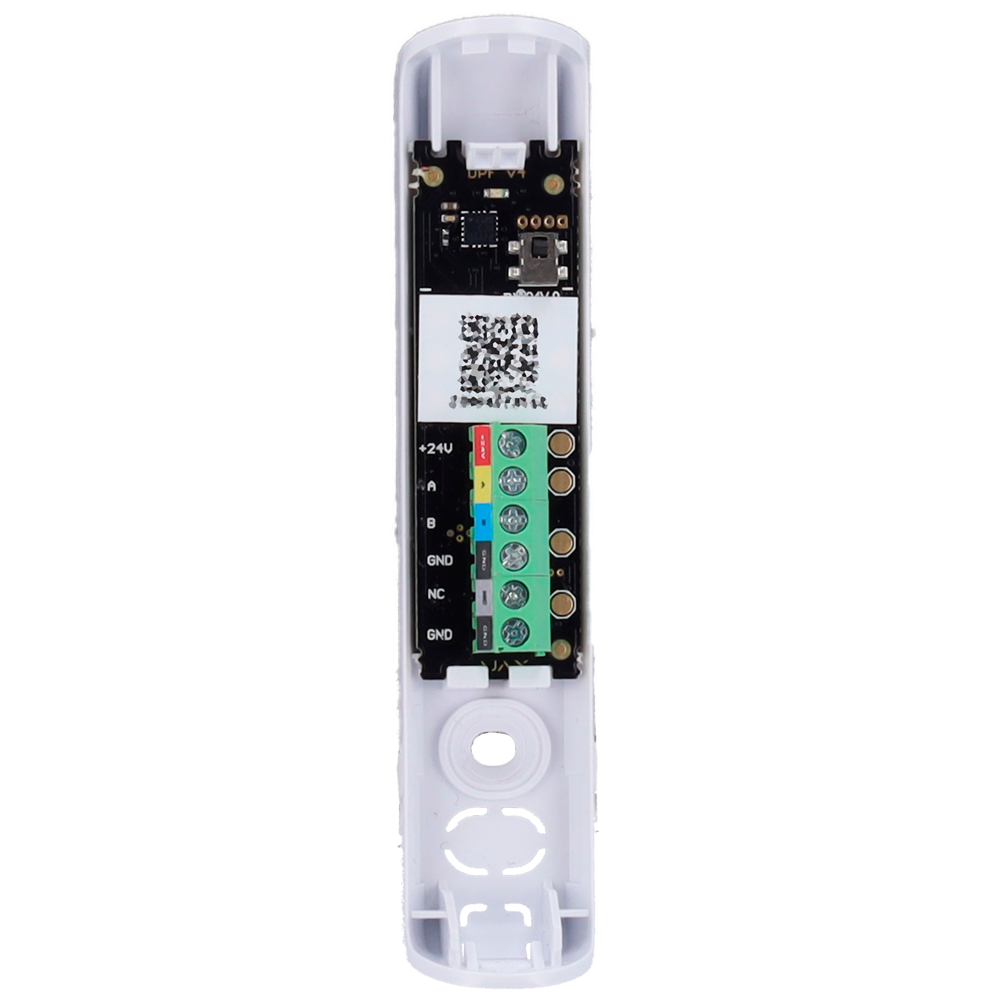

Connection terminal for 4 wires
Power 24VDC
LED indicator for opening/closing detection
Supports wired sensor input
Tamper-resistant opening
Interior use
Includes mounting bracket
White colour
Specifications
| Brand | Ajax Fibra |
| Security grade | Grade 2 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Sensors | 1 accelerometer and 2 reed relays |
| Impact sensor sensitivity | 3 levels |
| Tilt sensor activation threshold | From 5° to 25° |
| LED indicators | Alarm, tamper, signal |
| Additional detector connection | Wired detectors with normally closed contact type (NC) |
| Power | 24 V DC (Consumption up to 55 µA) |
| Temp. operation | -10º C ~ +40º C |
| Housing material | ABS plastic |
| Magnet dimensions | 90,5 (Al) × 21 (W) × 18,5 (Fo) mm |
