Bobbin of cable
FRC10-100-C

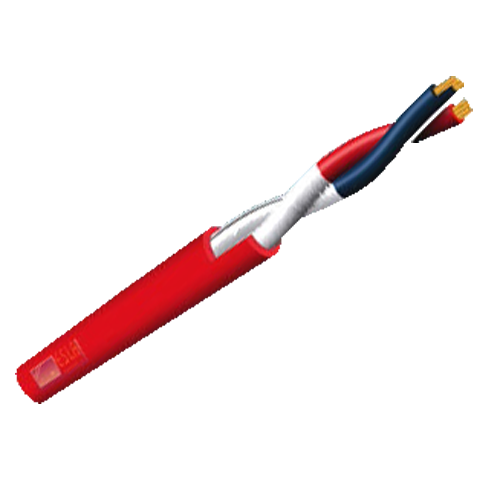

Shielded braided cable drum - Fire resistant 90' CR1 - Bobbin of 100 meters - Copper conductor 2x1mm2 - CPR certificate Cca -1sb, a1, d1 - Certified EN 50575 - Resistance 21 Ω/Km
Description
Fire-resistant twisted pair cable bobbin
100 m
Specially for fire
Shielding
2 conductors
Inner conductor Flexible polished copper Class 5 1mm2
25 turns/meter
Silicone Ceramic CR1 Fire Resistant 2.8mm
Screen Aluminium Mylar+Drain CuSn
Cover Polyolefin EVA 7.0 mm
Certified EN 50575
Resistance 21 Ω/Km
Specifications
| Length | 100 m |
| Interior conductor | Flexible polished copper Class 5 1mm2 |
| Isolation | Silicone Ceramic CR1 Fire Resistant 2.8mm |
| Active time to fire | 90 minutes |
| Colour | Red and Black - more than 25 turns/meter |
| Screen | Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20 |
| External cover | Halogen Free EVA Polyolefin 7-7.4mm |
| Resistance | 21 Ω/Km |
| Working voltage | 500V |
| Capacity | 98 pF/m |
| Working voltage | -40º ~ +70º |
| Certification | CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
