FRC25-100-C

FRC25-100-C

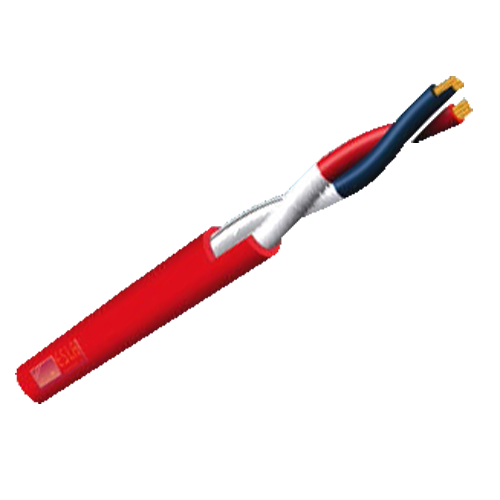

Shielded braided cable drum - Fire resistant 90' CR1 - Bobbin of 100 meters - Copper conductor 2x2.5mm2 - CPR certificate Cca -1sb, a1, d1 - Certified EN 50575 - Resistance 8.3 Ω/Km
Description

Fire-resistant twisted pair cable bobbin

100 m

Specially for fire

Shielding

2 conductors

Inner conductor Flexible polished copper Class 5 2.5mm2

25 turns/meter

Silicone Ceramic CR1 Fire Resistant 3.4mm

Screen Aluminium Mylar+Drain CuSn

Cover Polyolefin EVA 8.0 mm

Certified EN 50575

Resistance 8.3 Ω/Km

Specifications
Length 100 m
Interior conductor Flexible polished copper Class 5 2.5mm2
Isolation Silicone Ceramic CR1 Fire Resistant 3.4mm
Active time to fire 90 minutes
Colour Red and Black - more than 25 turns/meter
Screen Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20
External cover Halogen Free EVA Polyolefin 8.3mm
Resistance 8.3 Ω/Km
Working voltage 500V
Capacity 98 pF/m
Working voltage -40º ~ +70º
Certification CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2
Contents

Bobbin of cable
