HAP120

14,53 €
15,62 €

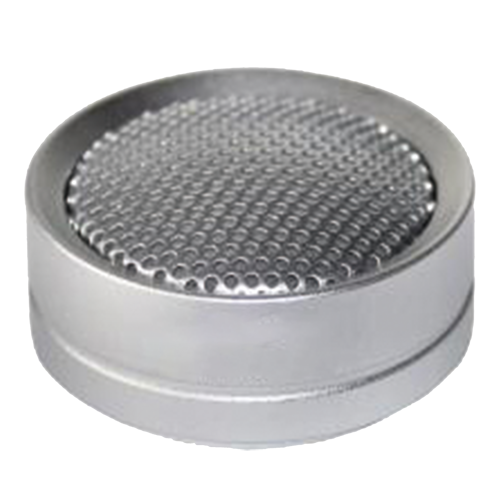

Branded Microphone - External / Omnidirectional - 10~70 m2 - RCA connector - Power supply DC12V - Esthetic design

Availability

2-5 Days

Buy

Description

Branded

External, Omnidirectional, Microphone

Audio output via female RCA connector

Power supply DC12V by male jack connector

S/N ratio 58 dB

Sensitivity -34dB

Range 10~70 m2

Output impedance 600 Ω

Specifications

Coverage	10 ~70 m2
Sensitivity	-34 dB
Frequency response	80 Hz ~ 16 KHz
Directionality Pattern	Omnidirectional
Signal-to-noise ratio	SNR 58 dB (re 94dBSPL = 1Pa@1KHz)
Dynamic range	74 dB
Maximum sustainable sound pressure	110 dBSPL (1KHz, THD 1%)
Output Impedance	600 ohm (unbalanced)
Signal Output	2.5 Vpp / 88dBSPL
Microphone Type	Film condenser
Power	DC12V / 40 mA
Working temperature	-30º C ~+70º C
Material	Aluminium
Weight	48 g
Dimensions	20 (H) x 40 (Ø) mm

Contents

External microphone

M4 screws for installation

User instructions
