Contents
- Hysoon standalone reader
- Mounting material
- User instructions
HY-AC010
44,78 €
49,75 €
49,75 €

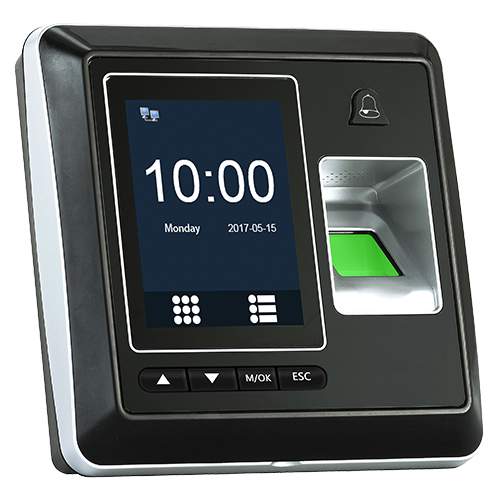

Hysoon autonomous access control - Fingerprints and EM card - 3.000 recordings / 160.000 records - TCP/IP, RS485, and Wiegand 26 - Integrated controller - Free eTime software
Description
- Hysoon
- Standalone biometric access control
- Identification by fingerprint, EM RFID card and/or combinations
- 2.8" TFT Screen & keypad
- Capacity 3.000 fingerprints/cards, 160.000 records
- Communication TCP/IP, RS485 and Wiegand 26
- Integrated controller (door sensor, push button, doorbell and 2xrelé)
- eTime management software with access control module included for free
Specifications
| Brand | Hysoon |
| CPU | 320 MHz |
| Activation sensor | Keystroke or biometric reader |
| Keypad | Mechanical keypad |
| Capacity | Up to 3.000 users |
| Records | Up to 160.000 logs |
| Read time | < 0.5 sec. |
| FAR (False Acceptance Rate) | < 0.0001% |
| FRR (False Rejection Rate) | < 1% |
| Identification modes | Fingerprint, EM RFID (125 KHz) cards and/or password |
| Screen | 2.8" TFT colour 320x240 pixel |
| Proximity card | No |
| PC communication | TCP/IP, USB, RS485 |
| Inputs | Wiegand Input, Door sensor, Push button |
| Outputs | Wiegand, NO/NC relay output, doorbell |
| Temperature | 0º C ~ +45º C |
| Power | DC 12 V, 2A max. |
| Dimensions | 32 (D) x 114 (W) x 114 (H) mm |
| Weight | 300 g |
