- PoE injector
- PoE Splitter
INJ-POE-SPLIT
1,23 €
1,32 €
1,32 €

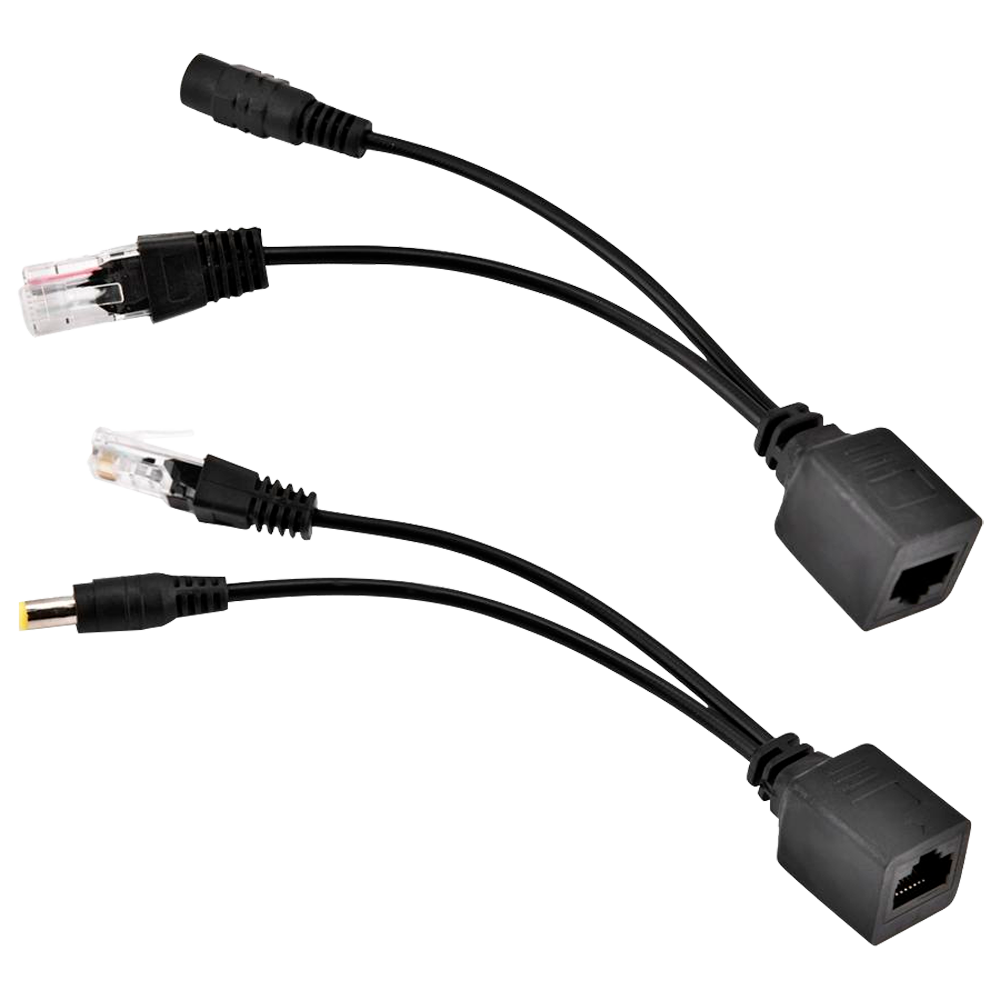

Passive PoE Injector and Splitter - Requires the use of the included pair - Input and output up to 48 V - Connectors RJ45 and power supply jack - Up to 100 meters UTP - Black colour
Description
- PoE Injector and Splitter
- PoE injector for injecting data and power into a UTP cable to power PoE devices
- PoE splitter to power and connect an IP camera to an Ethernet cable with PoE power supply
- They work together
- Requires powering the injector via 12 to 48V jack (depending on the voltage required at the splitter output)
- Power supply not included
- Black colour
Specifications
| Interface | Input / Output RJ45 female 10/100Mbps Input / Output power jack |
| Power supply | Up to DC 48V (power supply not included) |
| PoE features | Passive PoE (proprietary) Pins 4-5 power supply Pins 7-8 GND |
| Maximum range | 100 meters |
| Cable dimensions | 175 mm |
| Power connector dimensions | 2.1 mm x 5.5 mm |
