LR1002-1EC

LR1002-1EC

27,53 €
29,60 €

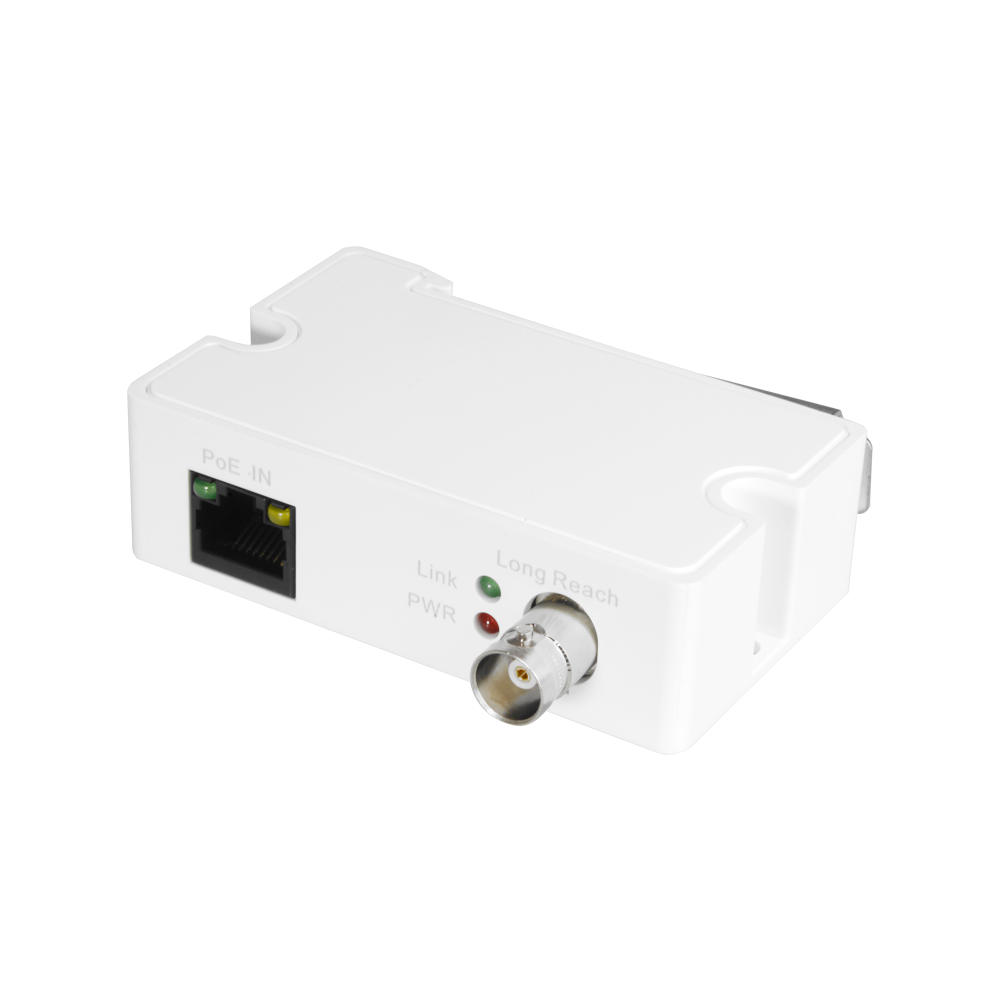

Branded EoC extender - Ethernet over coaxial cable - Active | Specific ePoE - Emitter compatible with range LR1002 - Allows transmission 1 IP channel - Maximum distance 1.000 m
Description
  • Branded
  • Ethernet Extender via Coax
  • Active emitter
  • Converts PoE/PoE+ to ePoE
  • Transmit 1 IP link(s)
  • Maximum distance 1000 m at 10 Mbps or 400 m at 100 Mbps
  • Supports ePoE 48V and 53V
  • Compatible with Ethernet over coax LR1002
Specifications
Connection over coaxialFemale BNC connector and RJ45 connector
Datarate100Mbps symmetrical (100Mbps upstream, 100Mbps downstream)
Distance over coaxial100 m between extenders up to 100Mbps (Up to 21W powered with 48V DC and 25.5W powered with 53V DC)
400 m between extenders up to 100Mbps (Up to 9W powered with 48V DC and 16W powered with 53V DC)
800 m between extenders up to 10Mbps (Up to 5W powered with 48V DC and 8W powered with 53V DC)
1000 m between extenders up to 10Mbps (Up to 4W powered with 48V DC and 6W powered with 53V DC)
ConnectionConverter for Switch / Emitter
PoE ProtocolPoE (IEEE802.3af/at) or Hi-PoE | ePoE 48V
Weight61 g
Contents
  • EoC Extender
