M5PLUS-BT-WIFI-MF

M5PLUS-BT-WIFI-MF

178,10 €
191,51 €

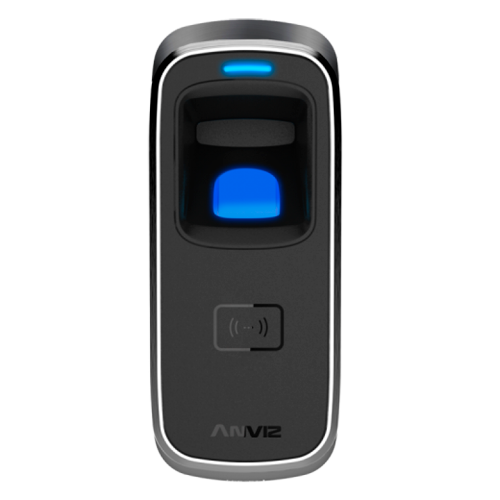

ANVIZ autonomous biometric reader - Fingerprints and MF - 3.000 recordings / 50.000 records - WiFi, Bluetooth, TCP/IP, miniUSB, Wiegand 26 - Integrated controller - Suitable for outdoor use - anti-vandal
Description
  • Anviz
  • Standalone biometric access control
  • Fingerprint and/or MF card identification
  • Capacity 3.000 fingerprints/cards, 50.000 records
  • Communication TCP/IP, WiFi, Bluetooth, RS485, miniUSB and Wiegand 26
  • Integrated controller (Door sensor, Push-button & Relay)
  •  Suitable for exterior IP65, anti-vandal IK10
  • ANVIZ CrossChex complete management software included
  • User Management and Openings from CrossChex App available for iOS and Android with Bluetooth.
Specifications
ProcessorLinux Based 1Ghz CPU
AlgorithmBioNano V10
Optical fingerprint sensorOptical Sensor
Activation sensorInfrared auto-activation
Scan area22 x 18 mm
Resolution500 DPI
Identification time< 0.5 Sec.
CapacityUp to 3.000 fingerprints or cards
RecordsUp to 50.000
Identification modesFingerprint, Card & Fingerprint+Card
Proximity cardMF
PC communicationWiFi, Bluetooth, TCP/IP & miniUSB
InputsDoor sensor, opening button
OutputsWiegand 26, RS485, Relay output NO/NC
ProtectionSuitable for outdoor IP65, IK10 anti-vandal
PowerDC 12 V / 150 mA
Temp. operation-30º C ~ +60º C
Dimensions34.5 (D) x 50 (W) x 124 (H) mm
Weight450 g
Contents
  • Access biometric reader
  • 4 plugs and 4 screws for mounting
  • Connection cables
  • User instructions
