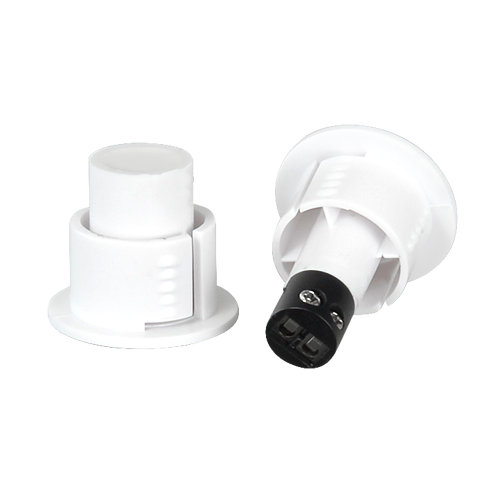

MC-EMPS
3,06 €
3,29 €
3,29 €
Magnetic contact High power - Suitable for metal installation - Reed Detection Technology - Terminal connection system - Resistance to mechanical and electrical shocks
Description
- Recessed magnetic detector
- Reed Technology
- High power
- Suitable for metal installation
- Resistance to mechanical and electrical shocks
- Terminal connection system
Specifications
| Technology | Reed |
| Power | High power |
| Maximum detection distance | Up to 25mm depending on the material where it is installed |
| Material | Plastic |
| Cable | Connector for 2 cables |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 10KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 30 x Ø18.5 mm Terminal: Ø9.5 mm Magnet: 21 x Ø19 mm |
