Magnetic contact
L-mount installation bracket
User instructions

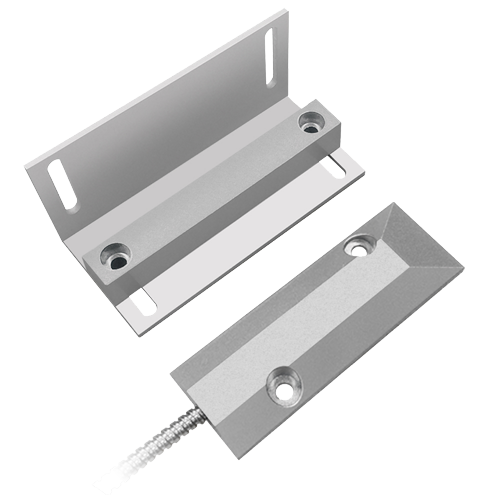

MC-RMMC-L
8,19 €
9,10 €
9,10 €
Magnetic contact - Suitable for metal installation - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks - L-Installation Bracket
Description
Magnetic contact for shutters and metallic doors
Reed Technology
High power
Suitable for metal installation
L-Installation Bracket
Resistance to mechanical and electrical shocks
2-wire system
Specifications
| Technology | Reed |
| Power | High power |
| Maximum detection distance | Up to 50mm depending on the material where it is installed |
| Material | Metallic |
| Cable | 2 wires protected by metal mesh |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 19KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 106 (W) x 10 (H) x 38 (D) mm Magnet: 106 (W) x 16 (H) x 16 (D) mm |
